Hyundai Ioniq (AE): AVN System / AVN(Audio Video Navigation) head unit. Components and components location

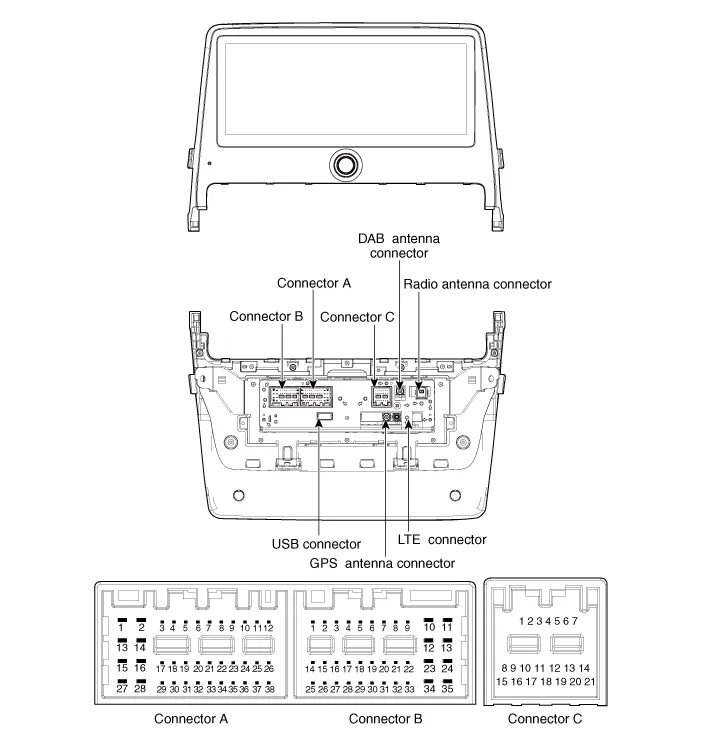

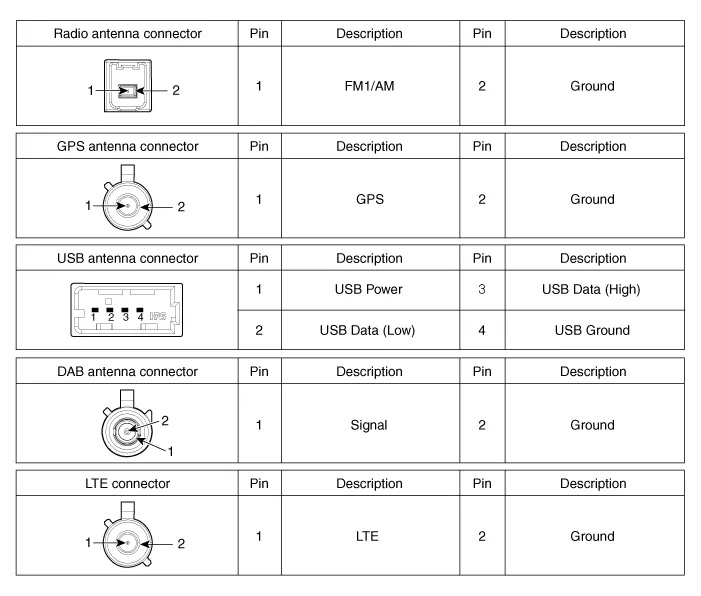

| Components |
|
No
|
Connector A
|
Connector B
|
Connector C
|
| 1 | - | - | B CAN (High) |
| 2 | - | Mic signal (+) | P CAN (High) |
| 3 | AMP NAVI VOICE (+) | - | IGN3 Wake up |
| 4 | AM SPDIF (High) | - | - |
| 5 | - | Antenna power | - |
| 6 | Camera power | Illumination (+) | - |
| 7 | Camera Video | MM Can (High) | - |
| 8 | - | - | B CAN (Low) |
| 9 | - | - | P CAN (Low) |
| 10 | - | Battery (+) | - |
| 11 | DTC | Battery (+) | - |
| 12 | Steering wheel remote control | Ground | - |
| 13 | - | Ground | - |
| 14 | - | - | - |
| 15 | - | Mic signal (-) | - |
| 16 | - | - | - |
| 17 | AMP NAVI VOICE (-) | - | - |
| 18 | AMP SPDIF (Low) | - | - |
| 19 | AMP SPDIF Ground | Illumination (-) | - |
| 20 | Camera power ground | MM Can (Low) | - |
| 21 | Camera video ground | - | - |
| 22 | - | ACC | |
| 23 | - | - | |
| 24 | - | - | |
| 25 | - | - | |
| 26 | Steering wheel remote constrol ground | - | |
| 27 | - | - | |
| 28 | - | - | |
| 29 | - | - | |
| 30 | - | - | |
| 31 | - | - | |
| 32 | - | - | |
| 33 | Camera shield ground | IGN 1 | |
| 34 | - | - | |
| 35 | - | - | |
| 36 | - | ||
| 37 | - | ||
| 38 | Speed |
DescriptionAVN SystemThe AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information.
Removal1.Disconnect the negative (-) battery terminal.2.Remove the cluster fascia panal.(Refer to Body - "Center Fascia Panal")3.Remove the crash pad garnish RH.
