Components

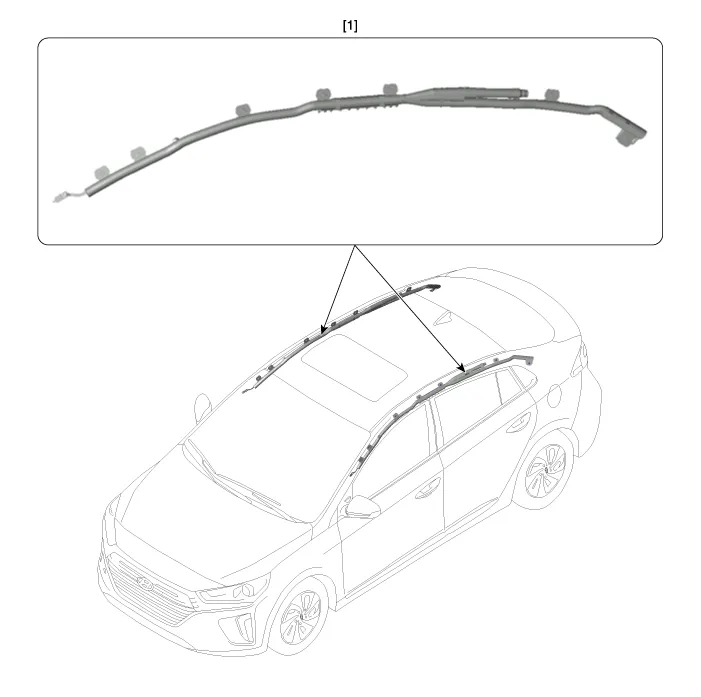

1. Curtain Air Bag (CAB)


    DescriptionCurtain airbags are installed inside the headliner (LH and RH) and protect the driver and passenger from danger when side crash occurs. The SRSCM determines deployment of curtain airbag by using side impact sensor (SIS) signal.

    Removal1.Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.2.Remove the roof trim.(Refer to Body - "Roof Trim Assembly")3.
