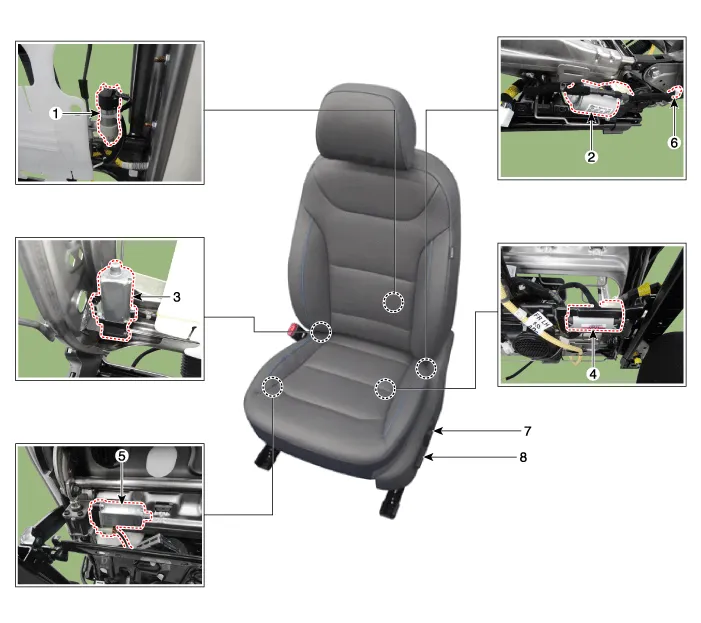

Component Location

1. Lumber support motor (Front/Rear)
2. Rear height motor
3. Reclining motor
4. Slide motor
5. Front height motor
6. Reclining limit switch
7. Lumber support switch
8. Seat switch

    InspectionDiagnosis with GDS1.The body electrocal system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).The diagnostic system (GDS) provides the following information.
