Hyundai Ioniq (AE): Heater / Auto Defoging Actuator. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Heating, Ventilation and Air Conditioning / Heater / Auto Defoging Actuator. Components and components location

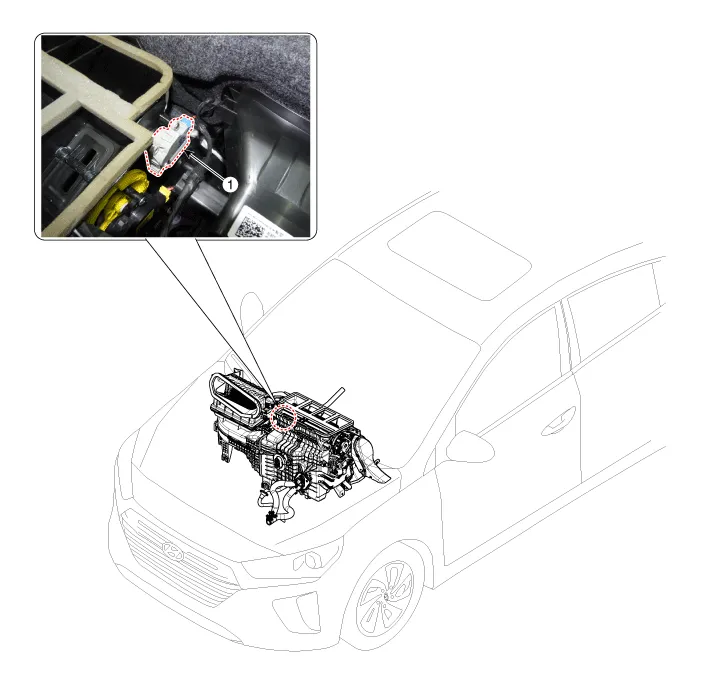

Components Location

1. Auto logging actuator


    Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.

    DescriptionThe auto defogging sensor is installed on front window glass. The sensor judges and sends signal if moisture occurs to blow out wind for defogging.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Receiver-Drier. Repair procedures

    Replacement1.Remove the condenser.2.Remove the cap (A) on the bottom of the condenser with a L wrench. Tightening torque : 9.81 - 14.71 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft) 3.Remove the receiver-drier (A) from condenser using a long nose plier.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: General safety information and caution

    Safety PrecautionPrecautions To Take Before Servicing High Voltage System    â€¢ Since hybrid vehicles contain a high voltage battery, if the high voltage system or vehicles are handled incorrectly, this might lead to a serious accidents like electric shock and electric leakage.
