Hyundai Ioniq (AE): Sunroof / Components and components location

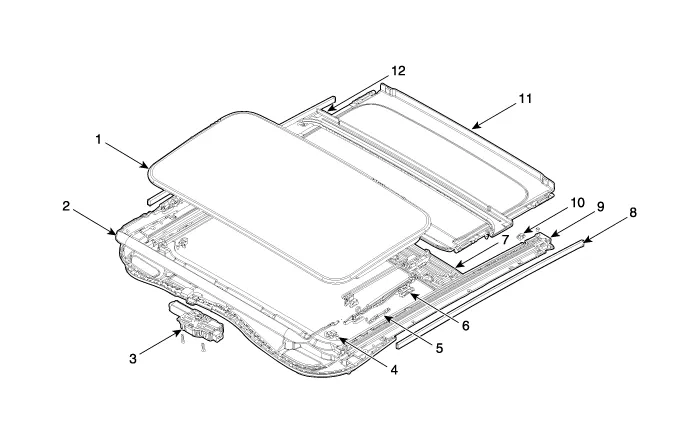

| Components |
| 1. Glass panel assembly 2. Deflector 3. Motor assembly 4. Spring base assembly 5. Seth plate assembly 6. Guide assembly | 7. Frame sub assembly 8. Seal tape 9. Rear drip 10. Stopper 11. Sunshade assembly 12. Drip rail assembly |
AdjustmentInspect Glass Alignment1.Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value [mm(in.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Description and operation
DescriptionThe temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows. The signal from the control unit adjusts the position of the temperature door by operating the temperature switch. Then the temperature will be regulated by the hot/cold air ratio decided by the position of the temper
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
