Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Seat / Components and components location

Components

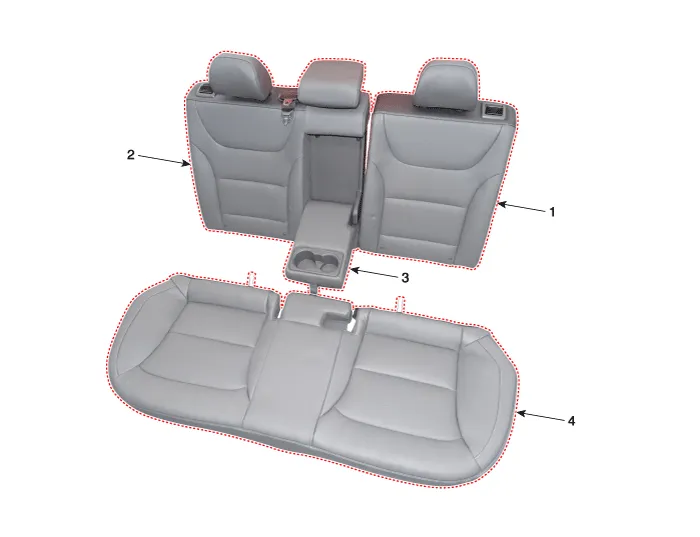

1. Rear seat back assembly [LH]
2. Rear seat back assembly [RH]
3. Rear back armrest
4. Rear seat cushion assembly

    Component Location 1. Rear seat cushion assembly2. Rear seat back assembly
