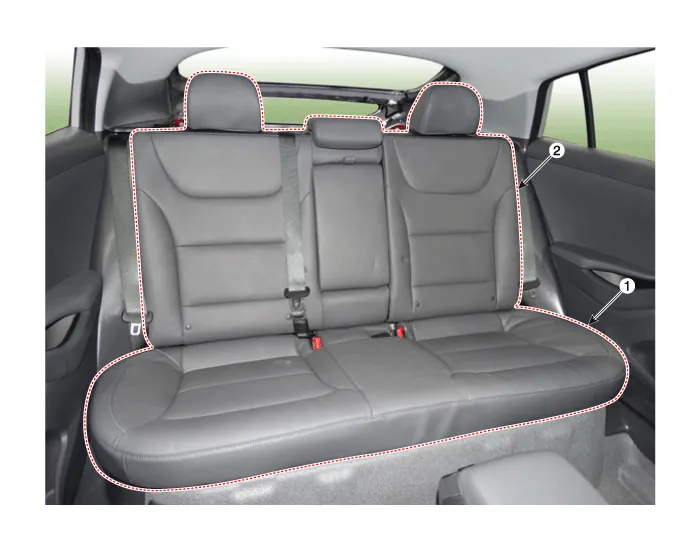

Component Location

1. Rear seat cushion assembly
2. Rear seat back assembly

    Components1. Rear seat back assembly [LH]2. Rear seat back assembly [RH]3. Rear back armrest4. Rear seat cushion assembly

    Replacement[Rear seat cushion assembly]1.Loosen the mounting bolts, remove the rear seat cushion assembly (A).2.Disconnect the rear seat cushion extension connector (A).
