Hyundai Ioniq (AE): Rear Seat / Rear Seat Assembly. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Assembly. Repair procedures

Replacement
[Rear seat cushion assembly]
1.

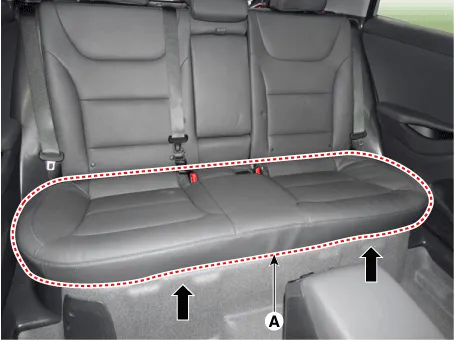

Loosen the mounting bolts, remove the rear seat cushion assembly (A).

2.

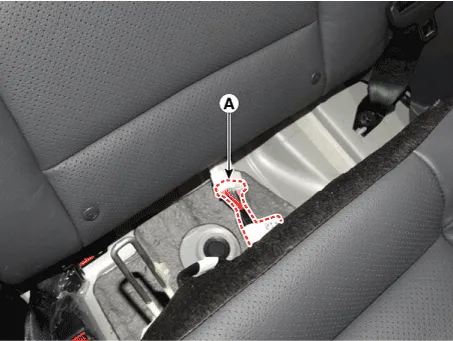

Disconnect the rear seat cushion extension connector (A).

3.
To install, reverse the removal procedure.
[Rear seat back assembly]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

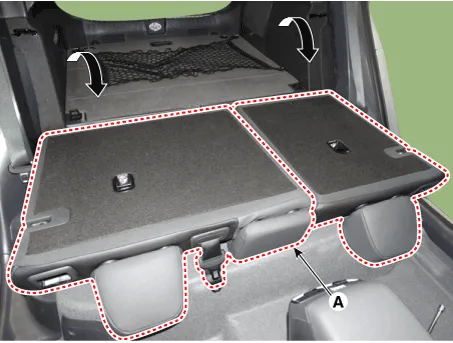

Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.

3.

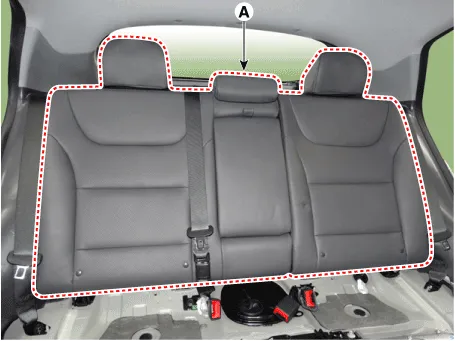

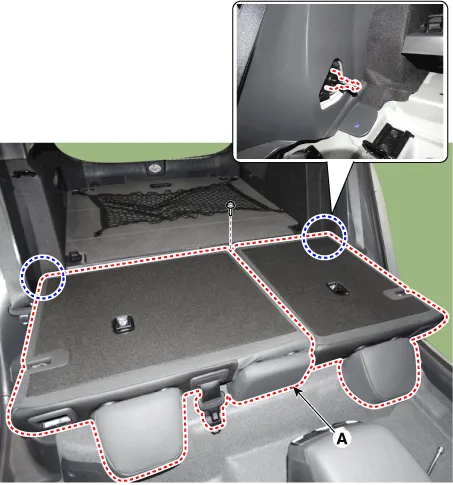

After loosening the mounting bolts, remove the rear seat assembly (A).
Tightening torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

4.
To install, reverse the removal procedure.

    Component Location 1. Rear seat cushion assembly2. Rear seat back assembly

    Component Location 1. Rear seat back cover [LH]2. Rear seat back cover [RH]
