Hyundai Ioniq (AE): Rear Seat / Rear Seat Back Cover. Components and components location
| Component Location |

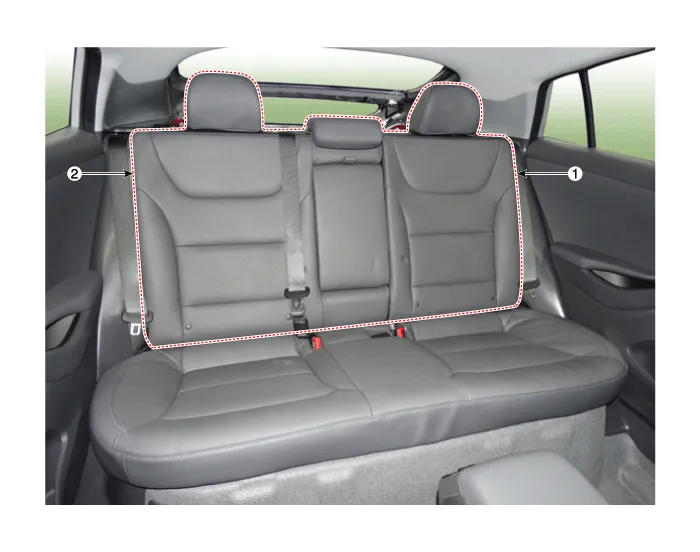

| 1. Rear seat back cover [LH] | 2. Rear seat back cover [RH] |
Replacement[Rear seat cushion assembly]1.Loosen the mounting bolts, remove the rear seat cushion assembly (A).2.Disconnect the rear seat cushion extension connector (A).
Replacement[LH] • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
