Hyundai Ioniq (AE): IMS(Integrated Memory System) / Components and components location

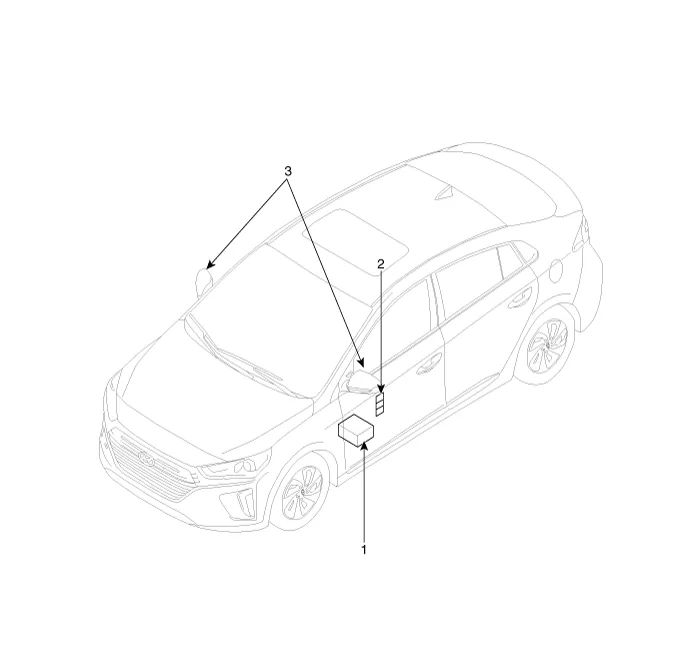

| Components |
| 1. Memory power seat unit (PSM) 2. IMS control switch | 3. Outside Mirror |
Specifications[Memory Power Seat Unit ] Item Specifications Rated voltageDC 12VOperating VoltageDC 9V - 16VOperating Temperature Range-30°C to 75°C Dark currentMax.
Components
