Hyundai Ioniq (AE): Air Conditioning System / Description and operation

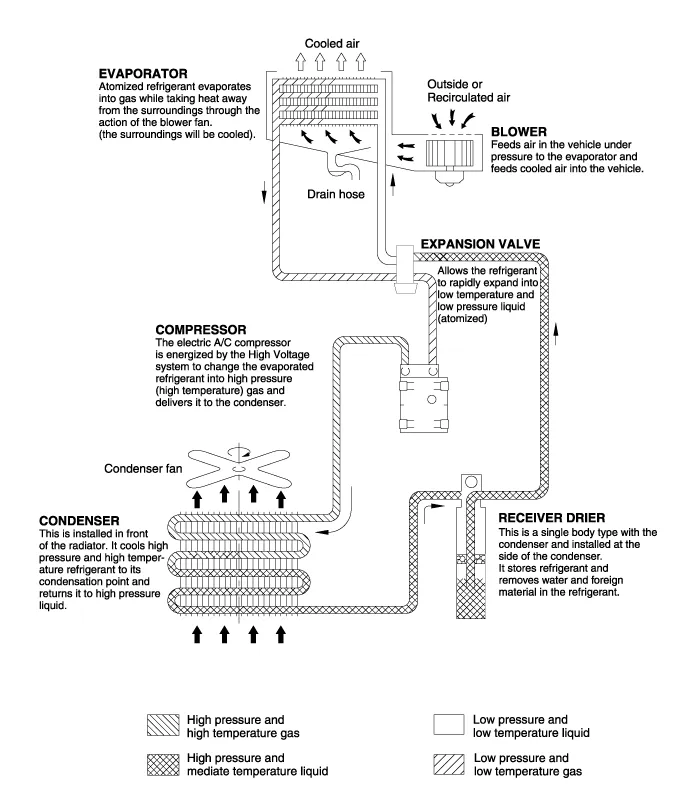

Refrigeration Cycle

    InstructionsWhen Handling Refrigerant1.R-134a, R-1234yf liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite.

    Refrigerant System Service BasicsRefrigerant Identification• Do not mix HFO-1234yf (R-1234yf) in the vehicle with other refrigerant, such as R-12, R-134a and etc.

    Other information:

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: PTC Heater. Repair procedures

    InspectionOperating Logic Test (Manual only)Inspect the PTC operation by confirmation logic as follows.1.Entering(1)Set the Floor mode and maximum heating position.(2)Turn off the blower switch.(3)Press the intake (recirculation) button 5 times or more.

    Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures

    Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
