Description

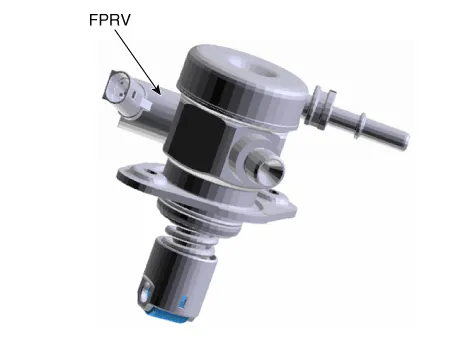

Fuel Pressure Control Valve is installed on the high pressure fuel pump and controls fuel flow flowing into the injectors in accordance with the ECM signal calculated based on various engine condition.

    Specification Item Specification Coil Resistance (Ω)0.49 ± 5% [20°C (68°F)]
