Hyundai Ioniq (AE): Interior Trim / Door Scuff Trim. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Interior Trim / Door Scuff Trim. Repair procedures

Replacement
[Front door scuff trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.

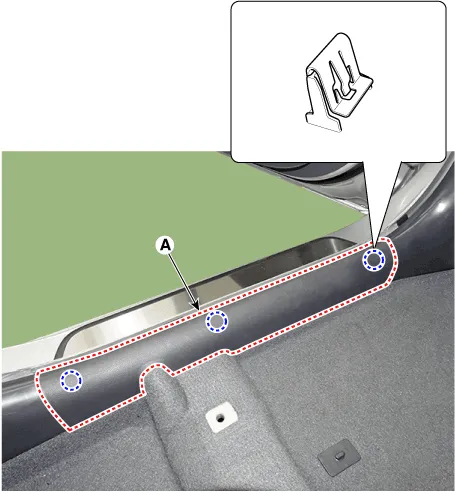

Using a screwdriver or remover, remove the front door scuff trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
[Rear door scuff trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

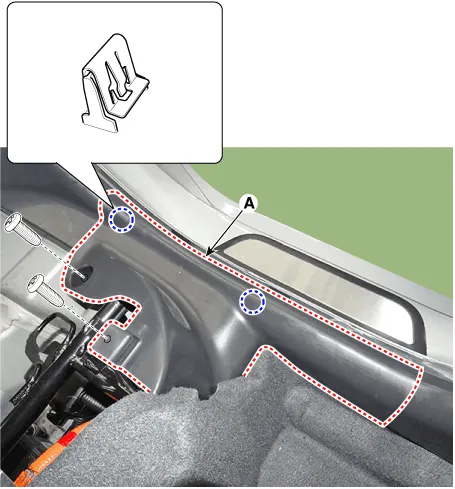

Loosen the mounting screws and remove the rear door scuff trim (A).

3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front door scuff trim2. Rear door scuff trim

    Component1. Front door step trim 2. Rear door step trim
