Hyundai Ioniq (AE): Front Seat / Front Seat Shield Outer Cover. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

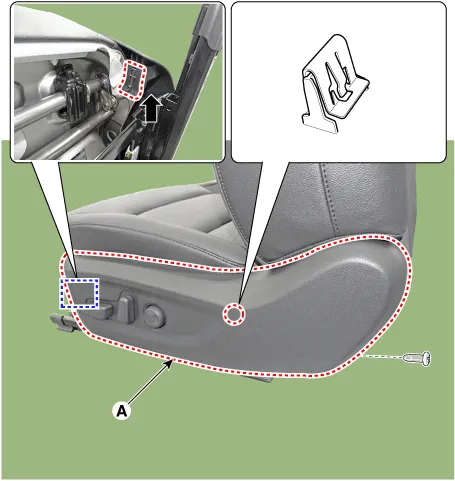

Remove the front seat shield outer cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

2.

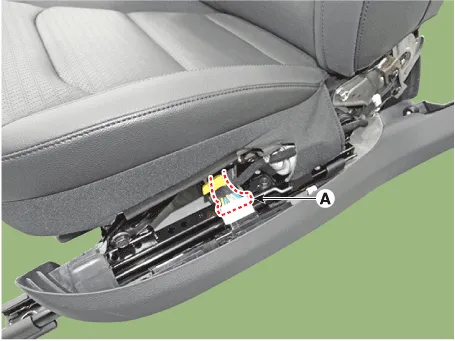

Disconnect the front seat power switch connector (A).

3.
To install, reverse the removal procedure.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Front seat shield outer cover

    Component Location 1. Front seat shield inner cover
