Hyundai Ioniq (AE): Hybrid Motor Assembly / Hybrid Drive Motor Assembly. Components and components location
| Component location |
| 1. HPCU (Hybrid Power Control Unit) (LDC+MCU+HCU+Reservoir) 2. Hybrid drive motor | 3. Hybrid starter generator (HSG) 4. Electrical radiator 5. Electric water pump (EWP) |
| Components |

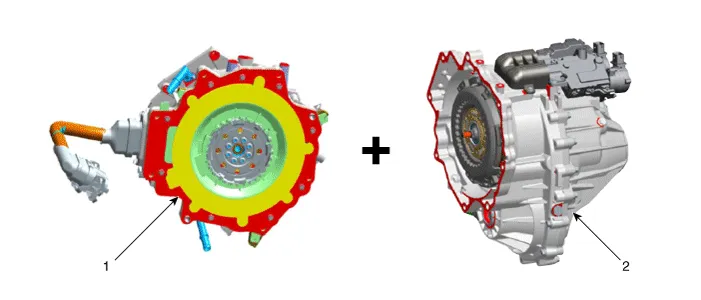

| 1. Hybrid motor assembly | 2. Double clutch transmission (DCT) |
DescriptionHybrid motor system is equipped with two electric motors.These motors include the drive motor and the HSG that plays the role of starter motor and alternator (generator).
Inspection1.Use the mΩ tester to check the line resistance. Category Inspection area Inspection criteria Remarks Resistance(Line- Line)U - V35.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: A/C Pressure Transducer. Description and operation
DescriptionThe A/C Pressure Transducer (APT) converts the pressure value of high pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it high speed or low speed. Engine ECU stops the operation of the compressor when the temperature of refrigerant line is very high or very
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
