Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.

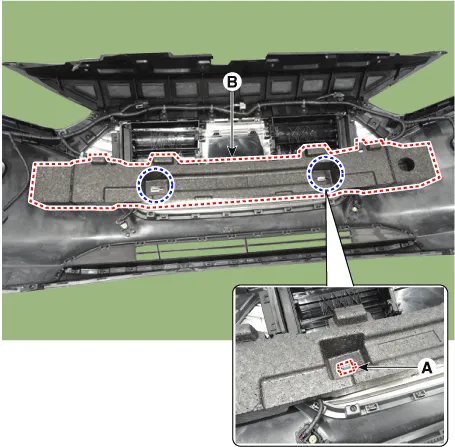

Remove the fixing clip (A) and then the front bumper energy absorber (B).

3.

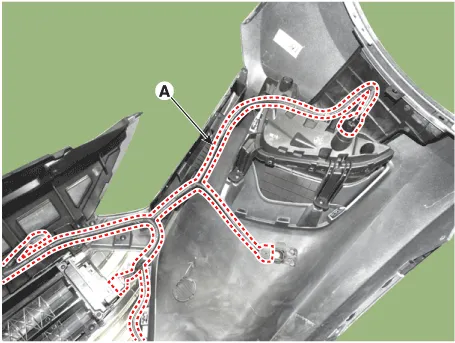

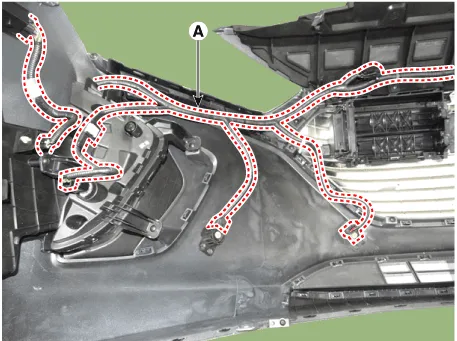

Separate the front bumper wiring (A).

4.

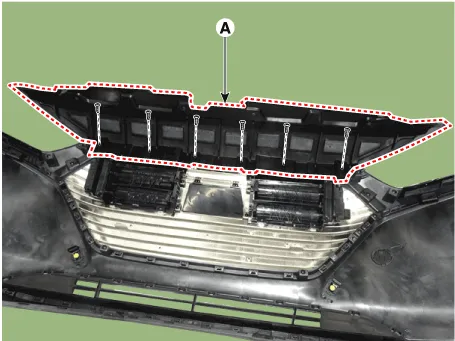

After loosening the mounting screws, remove the radiator grill upper cover (A).

5.

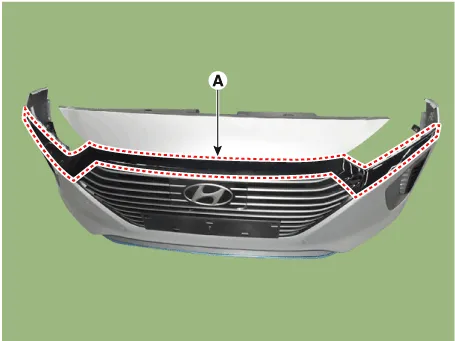

After loosening the mounting screws, remove the radiator upper garmish (A).

6.

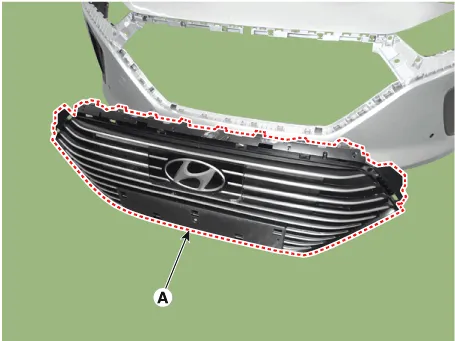

After loosening the mounting screws, remove the radiator grill (A).

7.
Remove the active air flap
(Refer to Engine Mechanical System - "Active Air Flap")
8.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Radiator grill
