Hyundai Ioniq (AE): Rear Suspension System / Rear Shock Absorber. Components and components location
| Components |

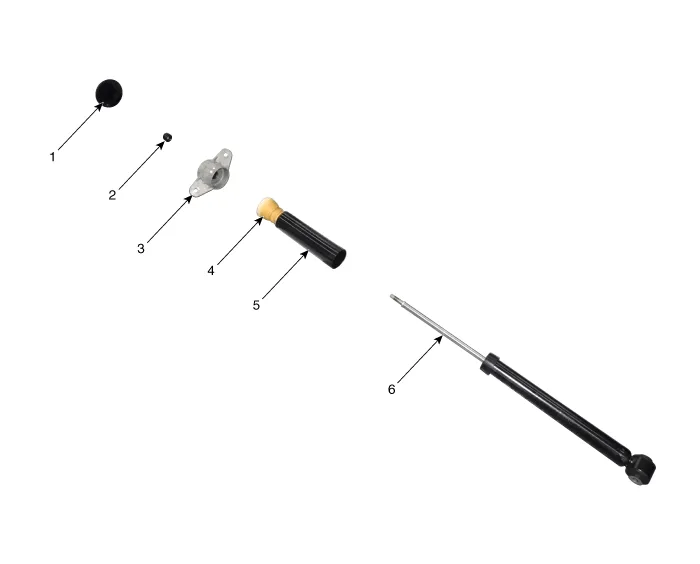

| 1. Shock absorber dust cap 2. Lock nut 3. Insulator assembly | 4. Bumper rubber 5. Dust cover 6. Shock absorber |
Components Location1. Rear upper arm2. Assist arm3. Rear cross member4. Rear stabilizer bar5. Trailing arm6. Rear lower arm7. Rear coil spring8. Rear shock absorber
Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the rear wheel and tire (A) from the rear hub.
