Hyundai Ioniq (AE): Interior Trim / Rear Transverse Trim. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Interior Trim / Rear Transverse Trim. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.

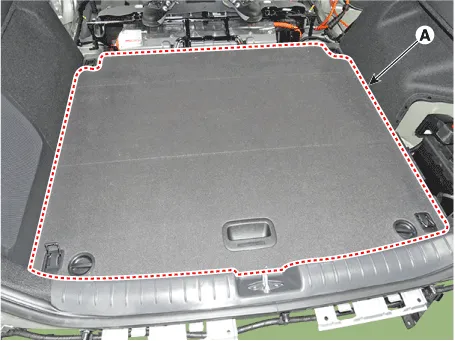

Remove the luggage boad (A).

2.

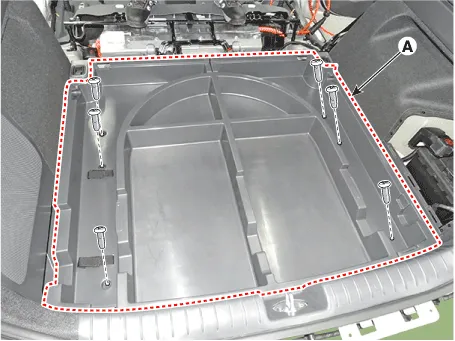

Loosen the mounting screws, remove the luggage side trim & center tray trim (A).

3.

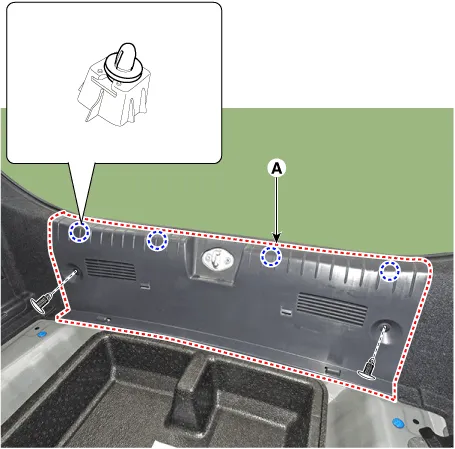

Loosen the mounting clips and remove the rear transverse trim (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear transverse trim

    Component Location 1. Luggage side trim
