Hyundai Ioniq (AE): Interior Trim / Rear Transverse Trim. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Interior Trim / Rear Transverse Trim. Components and components location

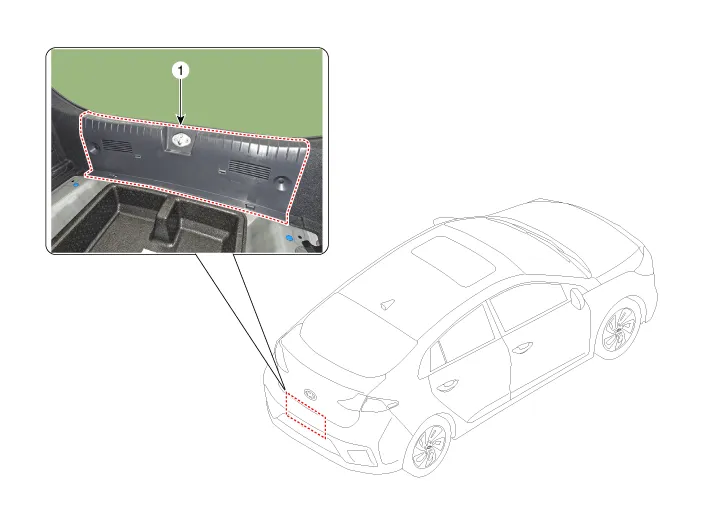

Component Location

1. Rear transverse trim


    Replacement[Center pillar lower trim]    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

    Replacement    â€¢ Put on gloves to prevent hand injuries.    â€¢ When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
