Hyundai Ioniq (AE): Interior Trim / Center Pillar Trim. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim. Repair procedures

Replacement
[Center pillar lower trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
2.
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
3.
Carefully remove the front door body side weatherstrip.
4.
Carefully remove the rear door body side weatherstrip.
5.

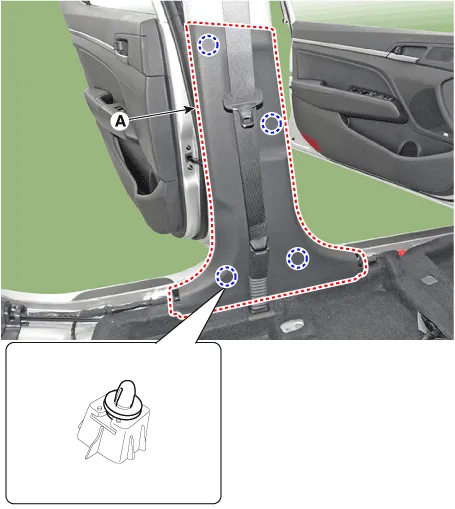

Using a screwdriver or remover, remove the center pillar lower trim (A).

6.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
[Center pillar upper trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the anchor seat belt connector.
(Refer to Restraint - "Emergency Fastening Device (EFD)")
3.

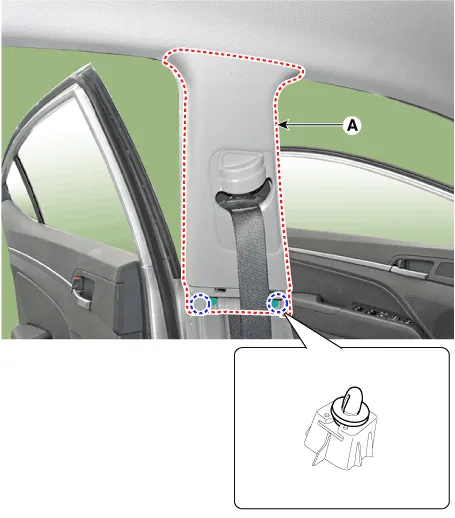

Using a screwdriver or remover, remove the center pillar upper trim (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Center pillar lower trim2. Center pillar upper trim

    Component Location 1. Rear transverse trim
