Hyundai Ioniq (AE): Side View Mirrors / Reverse Parking Aid Function

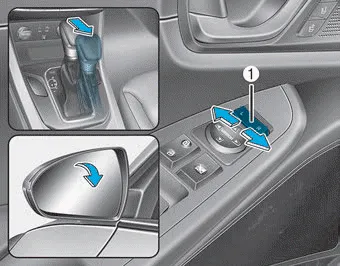

When you move the shift lever to the R (Reverse) position, the side view mirror(s) will rotate downwards to aid with driving in reverse. The position of the side view mirror switch (1) determines whether or not the mirrors will move:
Left/Right : When either the L (Left) or R (Right) switch is selected, both side view mirrors will move.
Neutral : When neither switch is selected, the side view mirrors will not move.
The side view mirrors will automatically revert to their original positions if any of the following occur:
- The Engine Start/Stop button is placed to either the OFF position or the ACC position.
- The shift lever is moved to any position except R (Reverse).
- The remote control side view mirror switch is not selected.
To fold the side view mirrors, grasp the housing of the mirror and then fold it toward the rear of the vehicle.
(1) Driver’s door power window switch (2) Front passenger’s door power window switch (3) Rear door (left) power window switch (4) Rear door (right) power window switch (5) Window opening and closing (6) Automatic power window (7) Power window lock switch
