| Schematic Diagram |

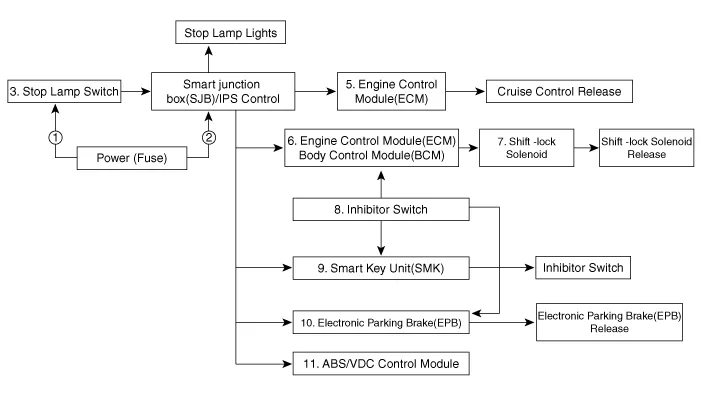

| System Circuit Diagram |

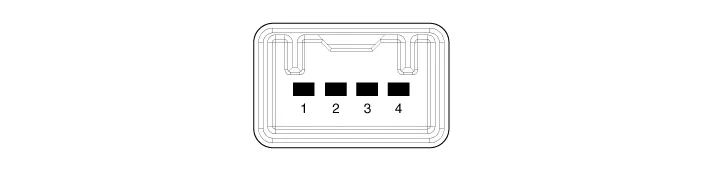

| Terminal Function |

|
Teminal
|
Description
|
| 1 | IGN1 |
| 2 | Engine Control Module (ECM) |
| 3 | B+ |
| 4 | Stop Lamp |
Components Location1. Brake pedal member assembly2. Stop lamp switch3. Brake pedal arm assembly4. Brake pedal pad5. Pedal stroke sensor
Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Remove the lower crash pad.(Refer to Body - "Crash Pad")3.Remove the knee airbag.
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
General Safety Information and CautionBe careful of the following precautions when driving the vehicle using the smart cruise control system. • The smart cruise control system may have limits in detecting distance to the vehicle ahead due to road and traffic conditions.
