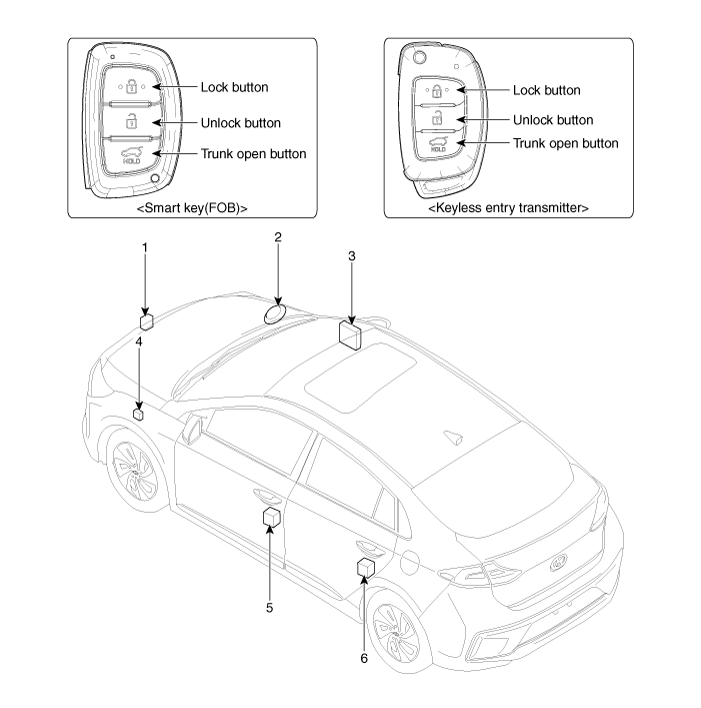

Component Location

1. Hood switch
2. Burglar horn
3. BCM
4. Door lock / unlock buzzer
5. Front door switch
6. Rear door switch

    Specification Item Specification Power source3VOperating temperature-30°C to +75°C (-22°F to +167°F)RF ModulationFSKLF ModulationASKRF frequency433.

    DescriptionBurglar Alarm State [B/A State] B/A State Description DISARM1) In "DISARM" state, no vehicle start inhibition.
