Hyundai Ioniq: Front Seat / Front Seat Shield Outer Cover. Components and components location
Hyundai Ioniq (AE) 2017-2025 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover. Components and components location
| Component Location |

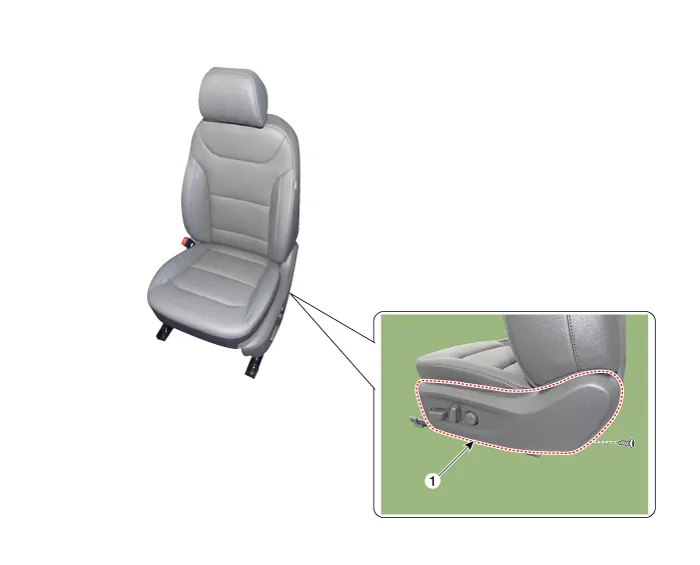

| 1. Front seat shield outer cover |
Front Seat Assembly. Repair procedures
Replacement1.Open the cover and loosen the front seat mounting bolts. [Front] Tightening torque : 49.0 - 58.8 N.m (5.0 - 6...
Front Seat Shield Outer Cover. Repair procedures
Replacement
•
Put on gloves to prevent hand injuries.
•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components...
