Hyundai Ioniq (AE): Engine Control System / Camshaft Position Sensor (CMPS). Schematic diagrams

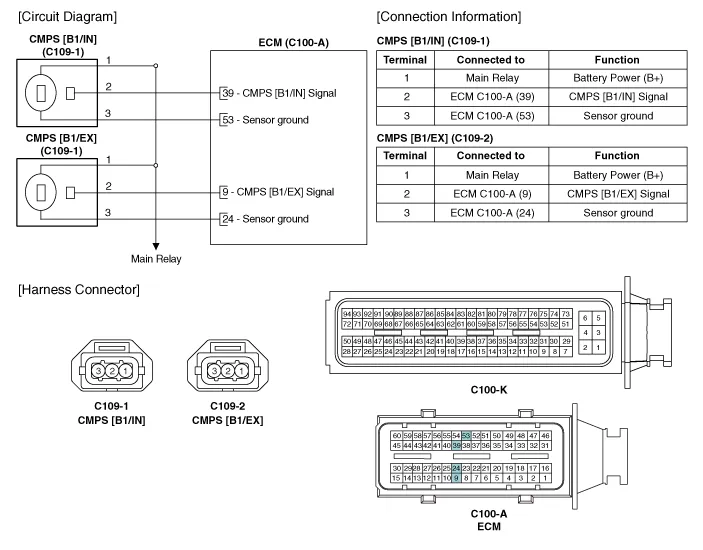

| Circuit Diagram |
Signal WaveformThis example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle. The PCM controls the injection and ignition timing by using these signals.
Inspection1.Check the signal waveform of the CMPS and CKPS using the GDS. Specification : Refer to "Wave Form"Removal • DON’T remove the camshaft position sensor while the engine is running or right after engine is turned off.
