Hyundai Ioniq (AE): AVN System / Components and components location

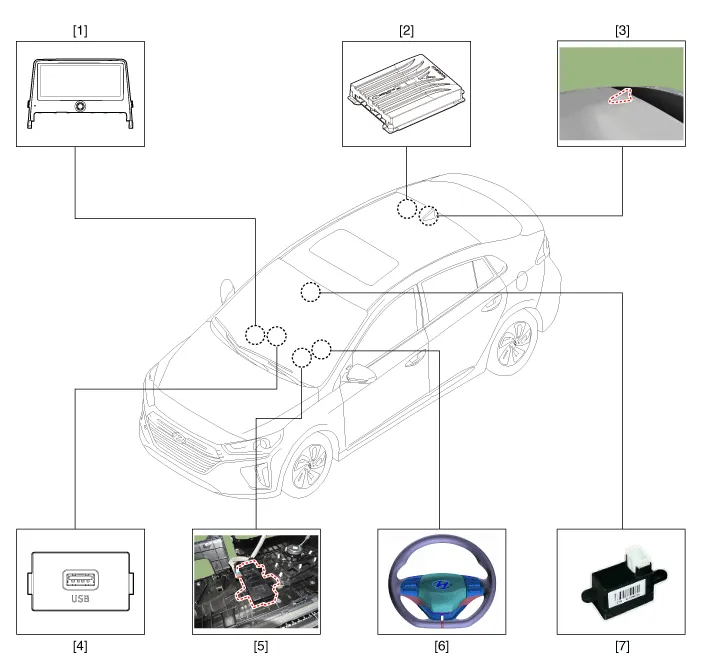

| Component Location |
| 1. AVN head unit 2. External amplifier 3. Roof antenna 4. USB jack | 5. Wifi & LTE Antenna 6. Steering wheel remote control 7. Hands-free mic (Built-in overhead console) |
DescriptionAVN SystemThe AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information.
