Hyundai Ioniq (AE): Fuses And Relays / Components and components location
| Component Location |

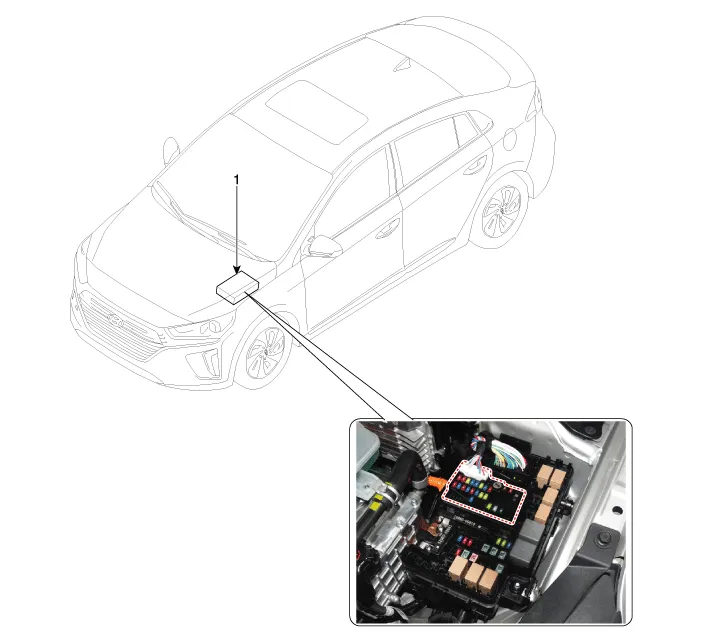

| 1. Engine room junction block |

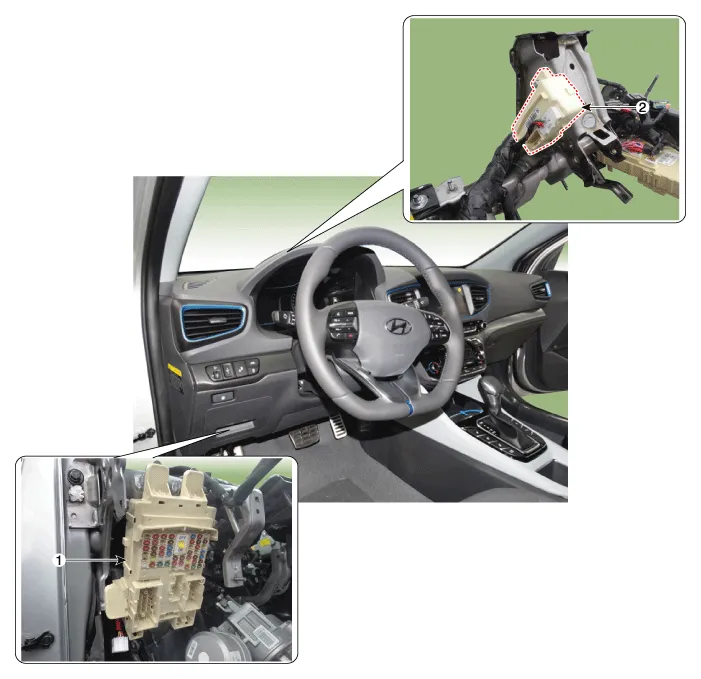

| 1. Smart junction block (SJB) | 2. ICM relay block |
Component LocationEngine Room Junction BlockE/R Junction BlockCircuit (E/R Junction Block)Metal Core Block (PCB)PCB BlockCircuit (PCB Block)
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Rear Corner Radar Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the rear bumper.(Refer to Body - "Rear Bumper")3.Remove the rear corner radar unit (A) after loosening the mounting nuts. • Take care not to separate the bracket from rear bumper when removing the rear corner radar sensor.
