Hyundai Ioniq (AE): Fuses And Relays / Relay Box (Engine Compartment). Components and components location
| Component Location |
| E/R Junction Block |

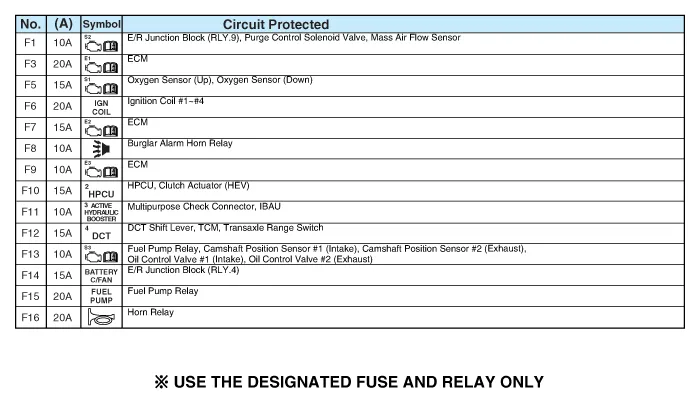

| Circuit (E/R Junction Block) |
| PCB Block |
| Circuit (PCB Block) |

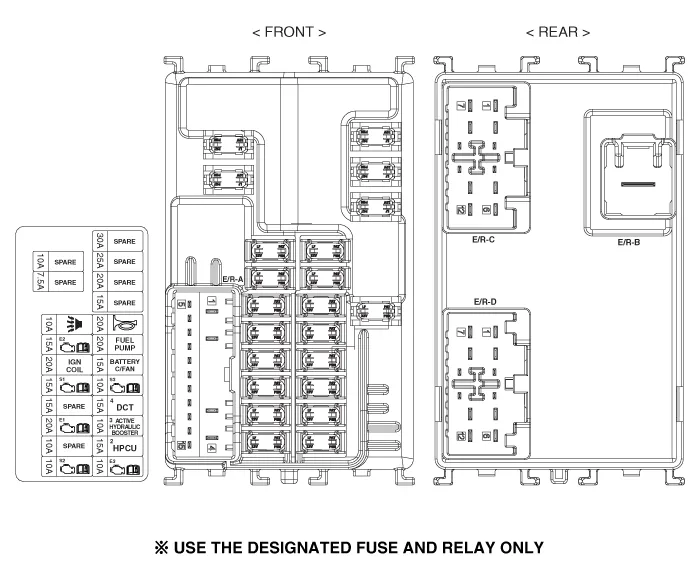

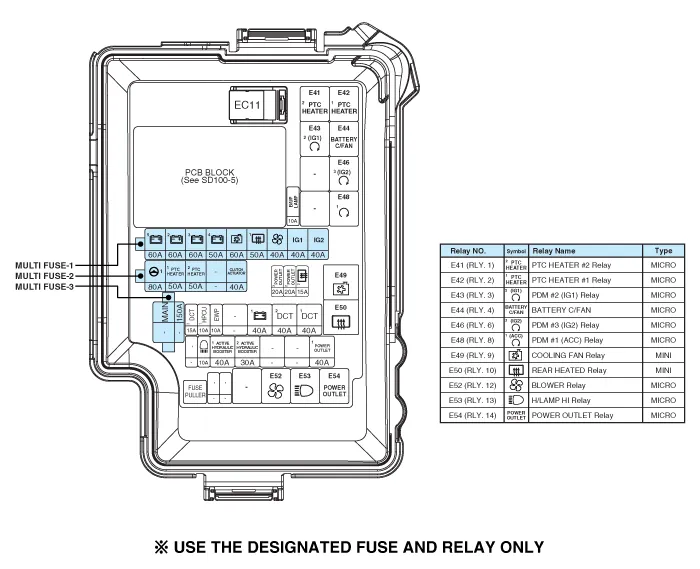

Component Location[Engine Room]1. Engine room junction block[Interior Relay]1. Smart junction block (SJB)2. ICM relay block
Inspection1.Disconnect the negative (-) battery terminal.2.Pull out the relay from the engine compartment relay block.Power Relay (Type A) Check for continuity between the terminals.
