Hyundai Ioniq (AE): Button Engine Start System / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body Electrical System / Button Engine Start System / Components and components location

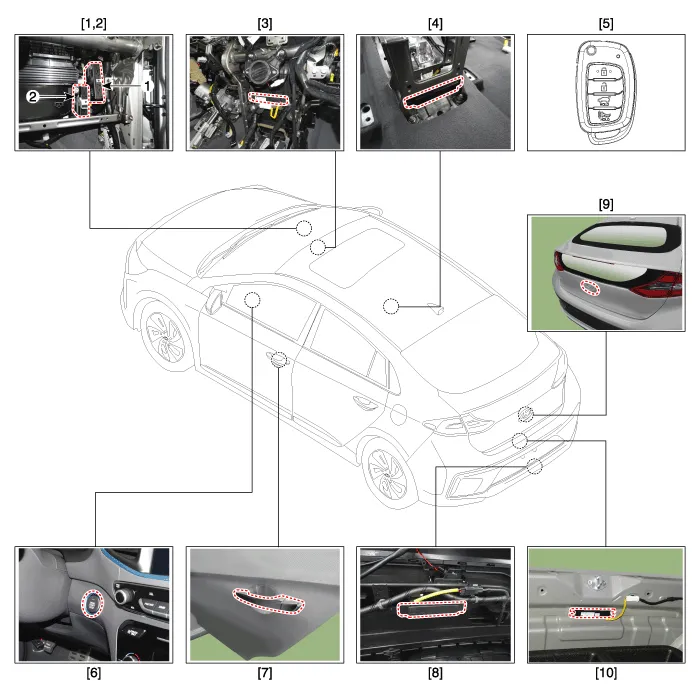

Component Location

1. Smart key unit
2. Body control module (BCM)
3. Interior antenna 1
4. Interior antenna 2
5. FOB Key
6. Start Stop Button (SSB)
7.Door handle & Door antenna
8. Bumper antenna
9. Trunk lid switch
10. Trunk antenna

    Circuit Diagram
