Hyundai Ioniq (AE): Button Engine Start System / Schematic diagrams
| Circuit Diagram |
Component Location1. Smart key unit2. Body control module (BCM)3. Interior antenna 14. Interior antenna 25. FOB Key6. Start Stop Button (SSB)7.Door handle & Door antenna8.

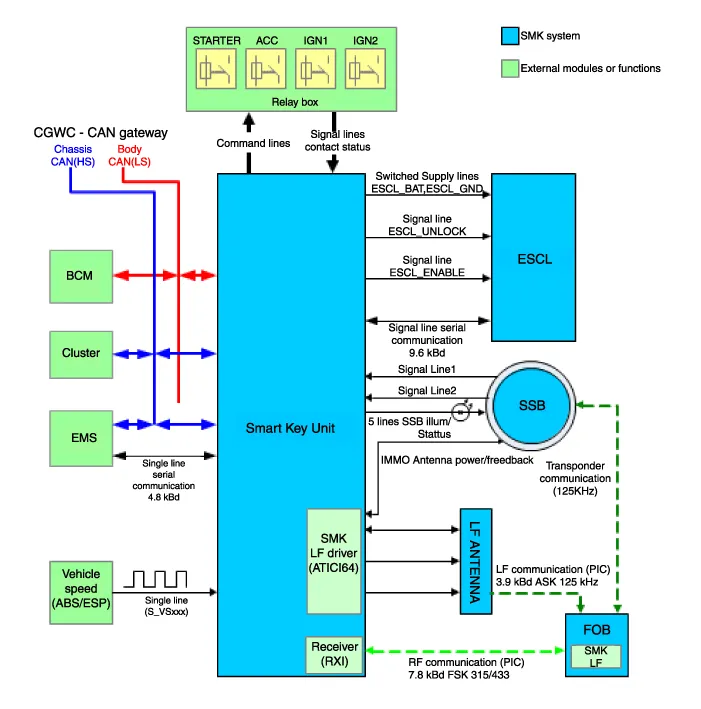

DescriptionSystem OverviewThe System offers the following features:– Human / machine interface through a 1-stage button, for terminal switching and engine start.
