Hyundai Ioniq (AE): High Voltage Battery System / Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Hybrid Control System / High Voltage Battery System / Components and components location

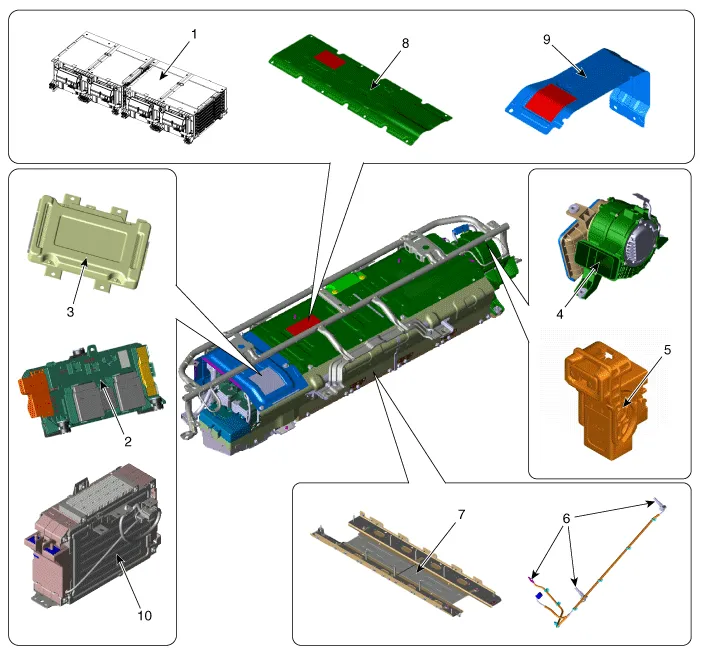

Components

1. High Voltage Battery Module
2. Power Relay Assembly (PRA)
3. BMS
4. Cooling Fan
5. Safeety Plug
6. Battery Temperature Sensor
7. High Voltage Battery Plate
8. High Voltage Battery Front Cover
9. High Voltage Battery Rear Cover
10. Auxiliary 12V Battery

    DescriptionThe High Voltage Battery System provides the hybrid drive motor, HSG, and electric A/C compressor with electric energy and also reserves the electric energy generated during regeneration braking.

    SpecificationBattery Pack Assemblyâ–· Type : LiPB (Lithium ion Polymer Battery), Pouch typeâ–· Specification[General Specification] Item Specification Remarks Number of Cells 16 Cells x 4 Modules 1 Cells = 3.
