Hyundai Ioniq (AE): Steering wheel / Components and components location

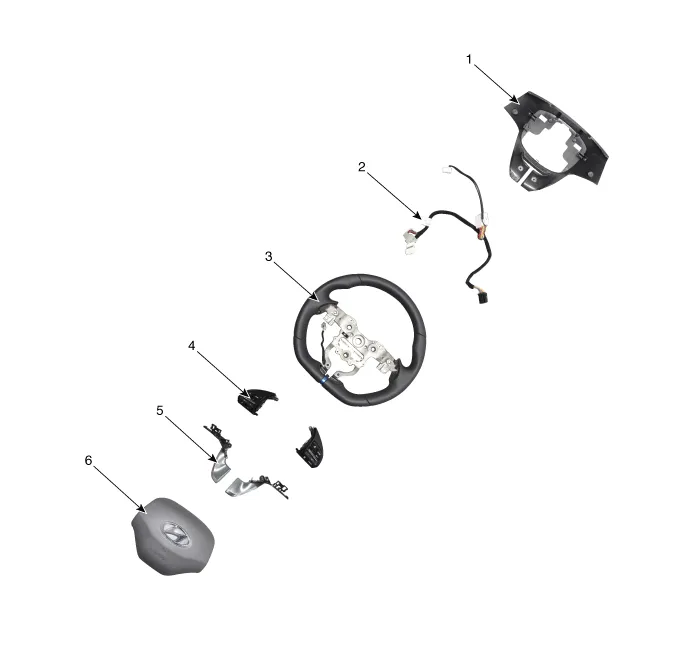

Components

1. Lower cover
2. Wiring
3. Steering wheel
4. Remote contorl switch
5. Upper cover
6. Driver airbag module(DAB)

    Removal1.Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.2.Turn the steering wheel so that the front wheels are placed in the straight ahead position.
