Hyundai Ioniq (AE): Rear Corner Radar System / Components and components location

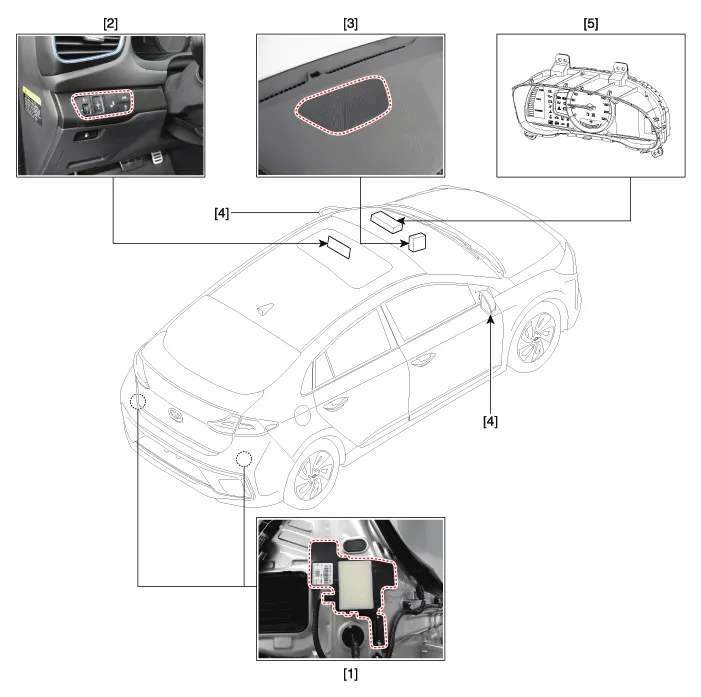

| Components |
| 1. Rear Corner Radar Unit 2. Rear Corner Safety ON/OFF Switch 3. Speaker | 4. Warning Indicator 5. Cluster |
Specifications Items Specification Rated voltageDC 12VOperating voltage9V - 16VOperating speed30㎞/h - 255㎞/hSensible distance30m (Sedan)Curvature radiusStart : More than 125m/30km/hStop : Less than 125mFrequency24 GHzNumbers2EA (Master 1EA, Slave 1EA)
DescriptionRear corner radar is a system that uses two magnetic wave radar sensors attached on the rear panel to measure the distance from the following vehicles and provides the sensing and (visual and auditory) alarm of any vehicle coming into the blind spot.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Smart Cruise Control (SCC) Switch. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the steering wheel assembly.(Refer to Steering System -"Steering Wheel")3.Remove the steering back cover (A).4.Remove the steering remote control connector (A).5.Remove the steering remote control (A), after loosening the screws.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Warning Indicator. Repair procedures
RemovalWarning Indicator1.Disconnect the negative (-) battery terminal.2.Remove the mirror (A).InstallationWarning Indicator1.Install the outside mirror.2.Connect the negative (-) battery terminal.Inspection1.Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
