Hyundai Ioniq (AE): Rear Corner Radar System / Warning Indicator. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Warning Indicator. Repair procedures

Removal
Warning Indicator
1.
Disconnect the negative (-) battery terminal.
2.

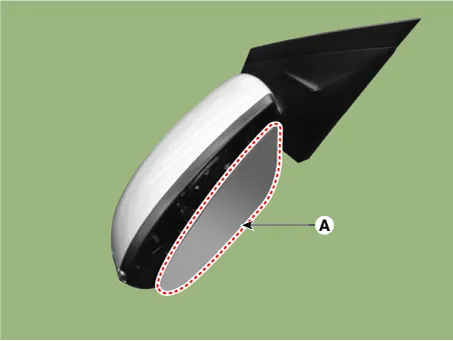

Remove the mirror (A).

Installation
Warning Indicator
1.
Install the outside mirror.
2.
Connect the negative (-) battery terminal.
Inspection
1.

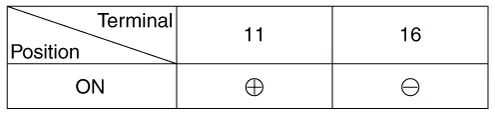

Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.

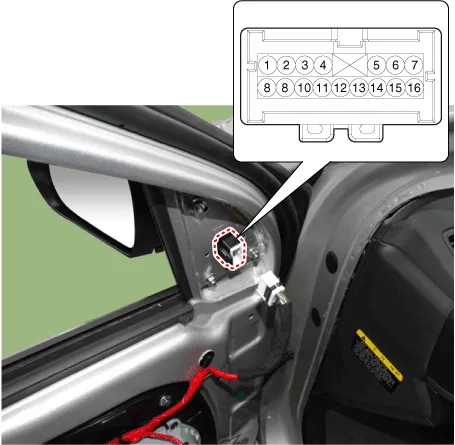

    Components1. Warning Indicator2. Side repeater lamp3. Puddle lamp
