Removal
1.
Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
2.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
3.
Remove the driver airbag module (DAB).


•

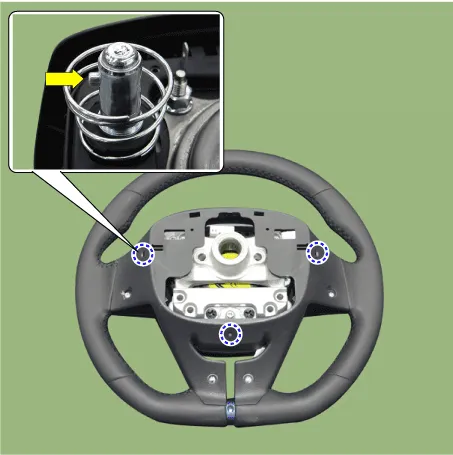

Insert the end of the flat tool along the guide hole. (Φ5mm allen wrench recommend.)
•
After inserting the tool, lightly press it. Can be easily remove the air bag module.
4.

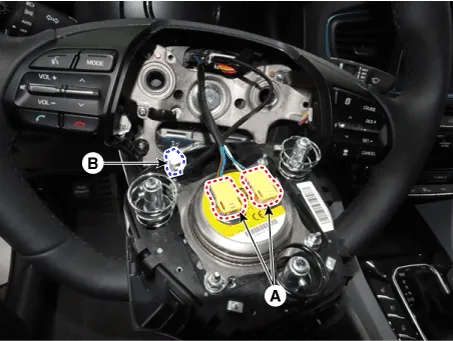

Disconnect the airbag module connector (A) and horn connector (B).


•
The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
5.

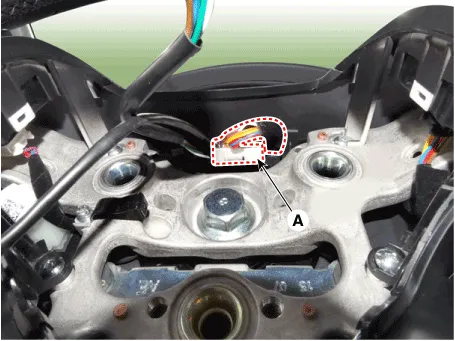

Disconnect the connector (A).

6.

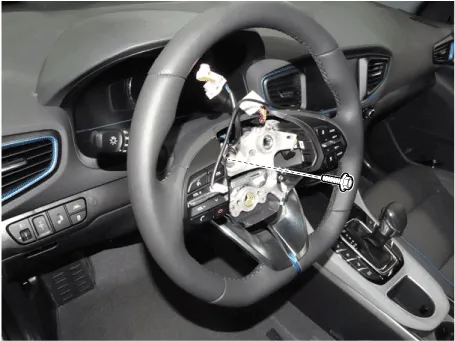

Remove the steering wheel by loosening the lock bolt.


•
Do not reuse the steering lock bolt.
•

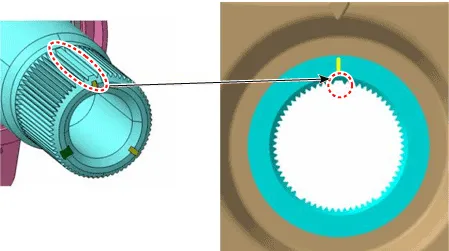

When assembling, match the gear teeth as the illustration below.

7.
Install in the reverse order of removal.
Disassembly
1.

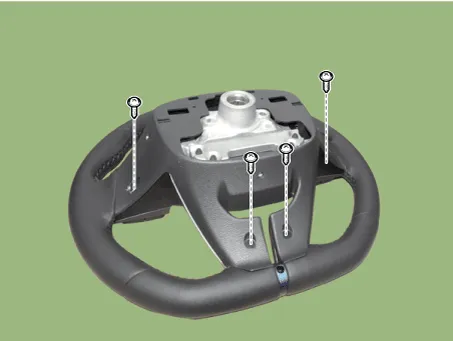

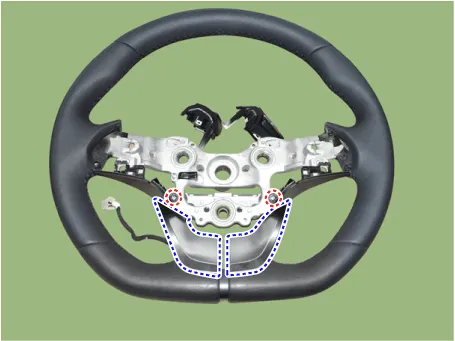

Loosen the screw and then remove the lower cover.

2.
Disconnect the remote control switch connector.

3.

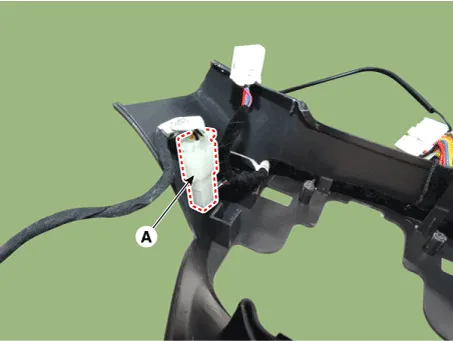

Disconnect the heated steering wheel pad connertor (A).

4.

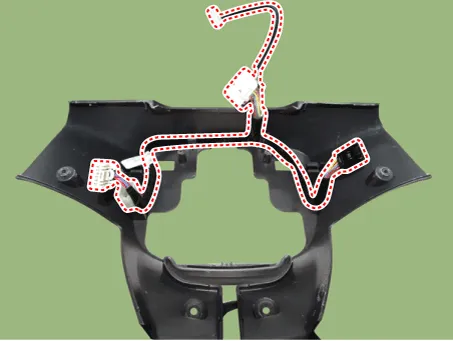

Remove the wiring from the lower cover.

5.

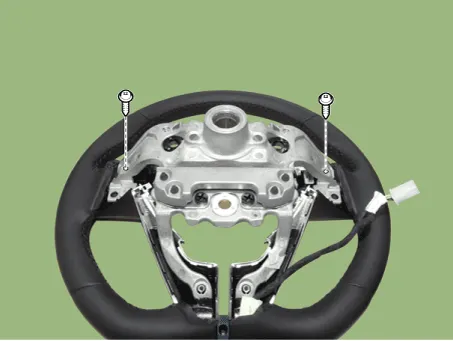

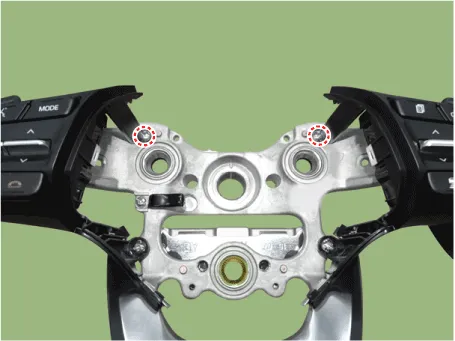

Separate the remote control switch by loosening the screw

6.
loosen the screw and then remove the steering wheel upper cover.

7.
To reassembly, reverse the disassembly procedure.

    Components1. Lower cover2. Wiring3. Steering wheel4. Remote contorl switch5. Upper cover6. Driver airbag module(DAB)
