Hyundai Ioniq (AE): Heated Steering wheel / Components and components location
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Steering System / Steering wheel / Heated Steering wheel / Components and components location
| Components location |

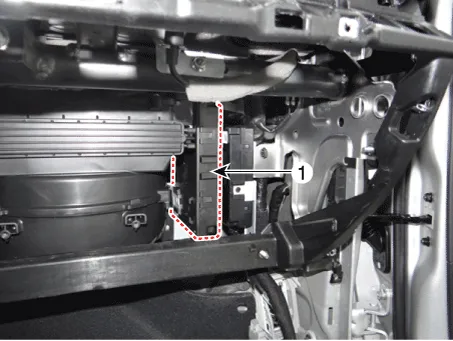

| Heated steering wheel control module (Body control moduel (BCM)) |
| 1. Body contorl module |

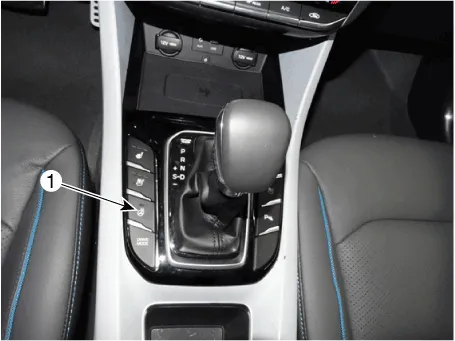

| Heated steering wheel switch |
| 1. Heated steering switch |
DescriptionFor the convenience of drivers during the winter, exothermic paint is applied to the surface of the steering wheel to generate heat when it is gripped.
