| Description |

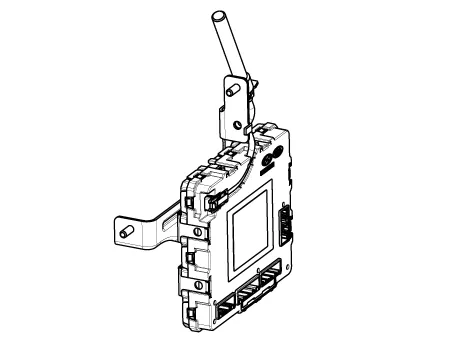

Components locationHeated steering wheel control module (Body control moduel (BCM))1. Body contorl module Heated steering wheel switch1. Heated steering switch

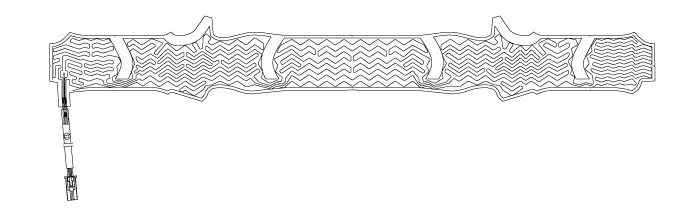

Specifications Item Specification Voltage13.5 VHeated pad resistance1.8 Ω ± 0.2 Ω NTC resistance10.
Inspection1.Turn the ignition switch OFF.2.Disconnect the mode control actuator connector.3.Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.Verify that the mode control actuator operates to the vent mode when connected in reverse.
Removal • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
