Hyundai Ioniq (AE): Air Conditioning System / Ambient Temperature Sensor. Components and components location

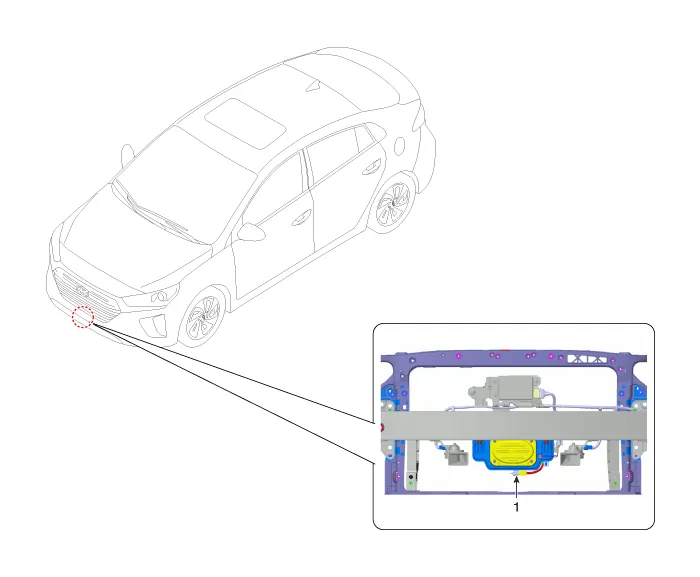

| Components Location |
| 1. Ambient temperature sensor |
DescriptionThe ambient temperature sensor is located at the front of the condenser and detects ambient air temperature. It is a negative type thermistor; resistance will increase with lower temperature, and decrease with higher temperature.
Inspection1.Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.1.
