Hyundai Ioniq (AE): Motor Driven Power Steering / Components and components location
| Components Location |

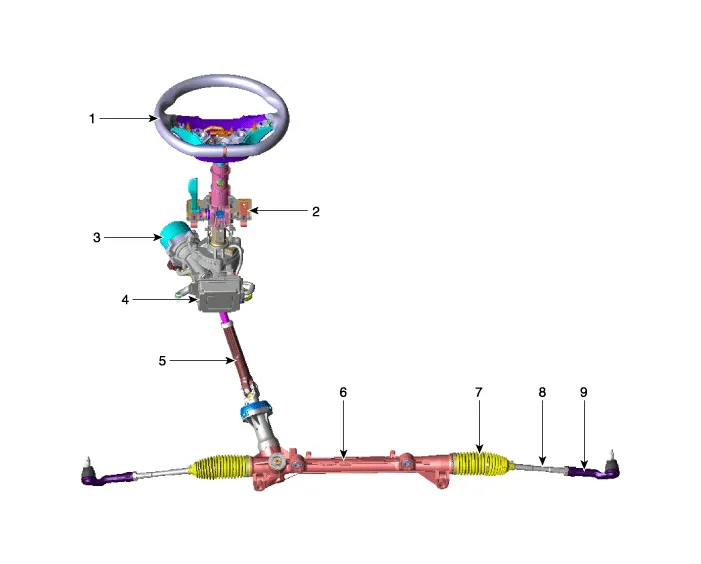

| 1. Steering wheel 2. Steering column 3. MDPS motor 4. MDPS ECU 5. Universal joint | 6. Steering gear box 7. Bellows 8. Tie rod 9. Tie rod end |
Description MDPS (Motor Dirven Power Steering) system uses an electric motor to assist the steering force and it is an engine operation independent steering system.
Schematic DiagramsTerminal Function Type Pin No Description Battery1Battery +2Battery -VSS1IGN2-3-4-5-6-7HIGH CAN8LOW CAN
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Rear Corner Radar Unit. Repair procedures
Removal1.Disconnect the negative (-) battery terminal.2.Remove the rear bumper.(Refer to Body - "Rear Bumper")3.Remove the rear corner radar unit (A) after loosening the mounting nuts. • Take care not to separate the bracket from rear bumper when removing the rear corner radar sensor.
