Hyundai Ioniq (AE): Clutch System / Concentric Slave Cylinder Assembly. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Engine Clutch System / Clutch System / Concentric Slave Cylinder Assembly. Repair procedures

Removal
1.
Remove the hybrid motor assembly.
(Refer to Hybrid Motor System - "Hybrid Motor Assembly")
2.
Remove the engine clutch actuator.
(Engine Clutch System - "Engine Clutch Actuator")
3.

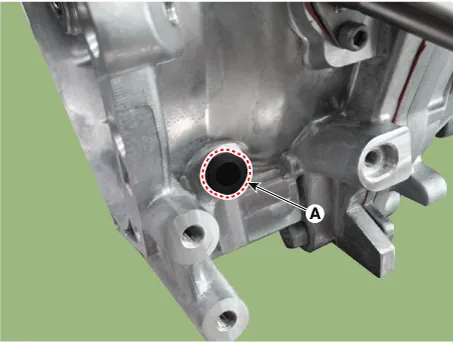

Remove the adapter (A).

4.

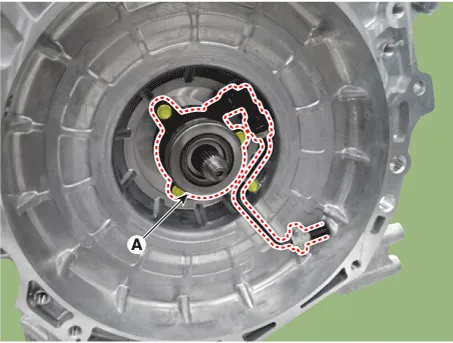

Remove the concentric slave cylinder (A) after loosening the bolts.
Tightening torque :
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Installation
1.
Install in the reverse order of removal.

•
After tightening bolts temporarily, tighten the bolt completely at the same time with regulation torque.
•
When it is assembled, it must be free from invasive foreign matters and oil leakage.
•

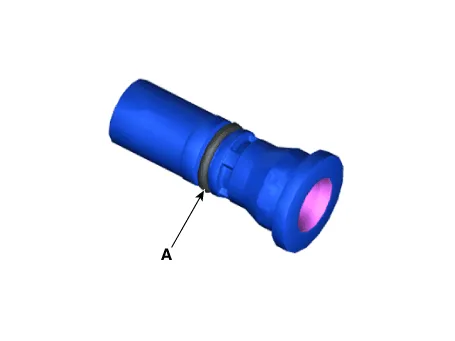

Before installing the adapter, check the assembled state of the O-rings (A).

2.

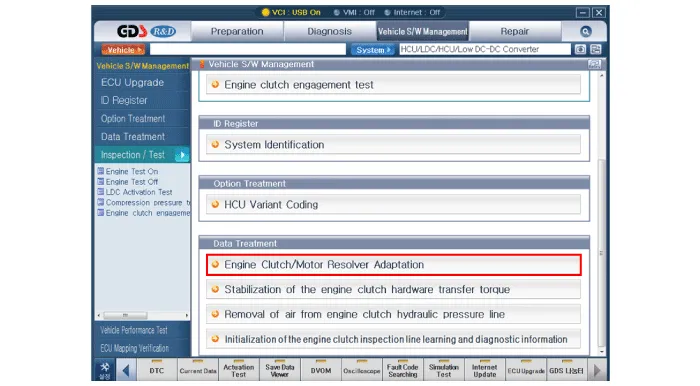

After replacing the Engine clutch actuator, operate the followings in order using GDS equipment.
(1)
Engine clutch inspection line learning and diagnostic information.

(2)
Removal of air from engine clutch hydraulic pressure line.

•
When using a vacuum-pressure equipment to inject hydraulic fluid, the vacuum pressure should be no more than 2.5 torr and the injection pressure should be between 2.3 - 2.5 bars.
•
If it is impossible to inject hydraulic fluid using the above condition, be sure to remove air from the hydraulic line of the engine clutch at a temperature between 0 - 40°C.

(3)
Engine clutch/motor resolver adaptation.

(4)
Stabilization of the engine clutch hardware transfer torque.

    Components 1. Clutch disc2. Clutch cover3. Concentric slave cylinder4. Hybrid motor assembly5. Engine clutch actuator6. Reservoir

    Components 1. Clutch disc2. Clutch cover3. Concentric slave cylinder4. Hybrid motor assembly5. Engine clutch actuator6. Reservoir
