Hyundai Ioniq (AE): Clutch System / Clutch Cover And Disc. Components and components location

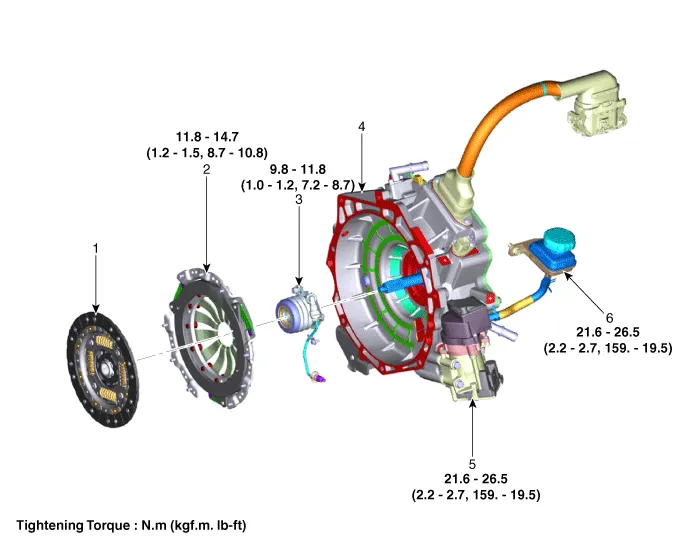

| Components |
| 1. Clutch disc 2. Clutch cover 3. Concentric slave cylinder | 4. Hybrid motor assembly 5. Engine clutch actuator 6. Reservoir |
Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the engine clutch actuator.(Engine Clutch System - "Engine Clutch Actuator")3.
Removal1.Remove the hybrid motor assembly.(Refer to Hybrid Motor System - "Hybrid Motor Assembly")2.Remove the clutch cover assembly and clutch disc after loosening the bolts.
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Mode Control Actuator. Description and operation
DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Repair procedures
Self Diagnosis1.Self-diagnosis process. • When operating the self-diagnostics, the below fault (self-diagnostics code) will blink at 0.5 seconds interval on the temperature display settings (driver's side only) and the remaining symbols are OFF .
