Replacement
[Front door step trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.

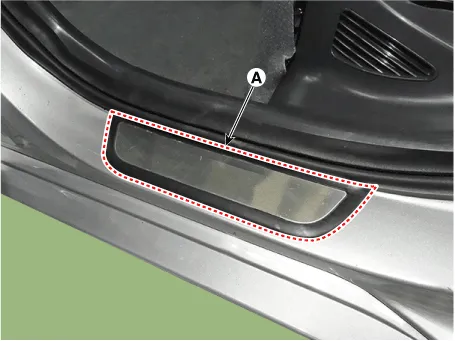

Using a screwdriver or remover, remove the front door step trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or retainers or fasteners).
[Rear door step trim]

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.

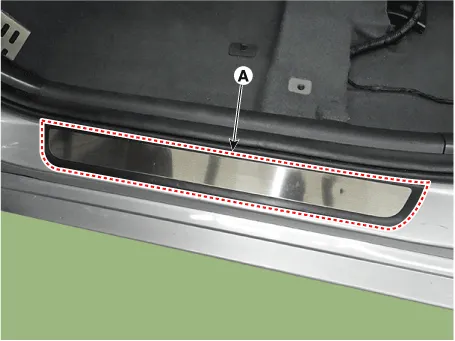

Using a screwdriver or remover, remove the rear door step trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips (or retainers or fasteners).
