Hyundai Ioniq (AE): Emergency Call System / Emergency Call (eCall) Unit. Components and components location

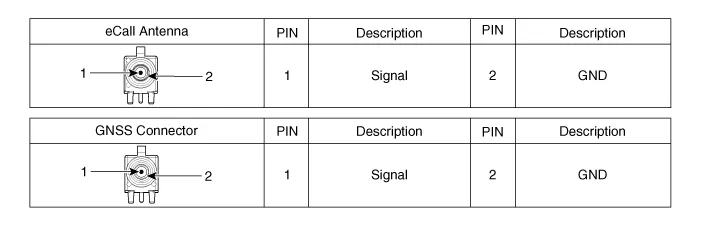

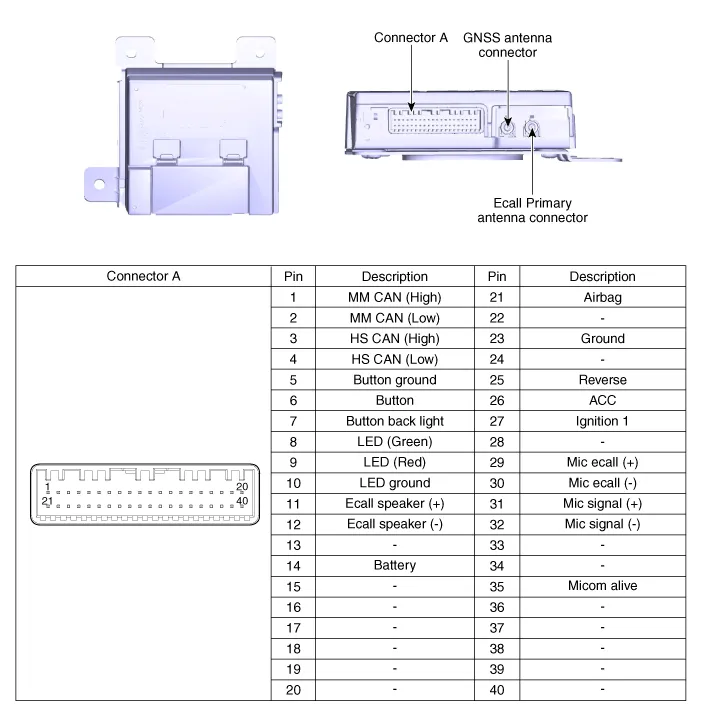

| Component |
DescriptionEmergency Call (eCall)When an accident occurs or the user's request is detected, it notifies the call center of the vehicle status using the wireless network so that the center can provide necessary emergency service.
Removal You must make sure turn RED LED ON if you do any of the following.– Replace the eCall unit.– Replace the Back-up Battery (BUB).
Other information:
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: In-car Sensor. Repair procedures
Diagnosis With GDS1.The heating, ventilation and air conditioning can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).※ The diagnostic system (GDS) provides the following information.(1) Self diagnosis : Checking the failure code (DTC) and display.
Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: emperature Control Actuator. Repair procedures
Inspection1.Turn the ignition switch OFF.2.Disconnect the temperature control actuator connector.3.Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.Verify that the temperature control actuator operates to the warm position when connected in reverse.
