Hyundai Ioniq (AE): Front View Camera System / Front View Camera Unit. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Advanced Driver Assistance System (ADAS) / Front View Camera System / Front View Camera Unit. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

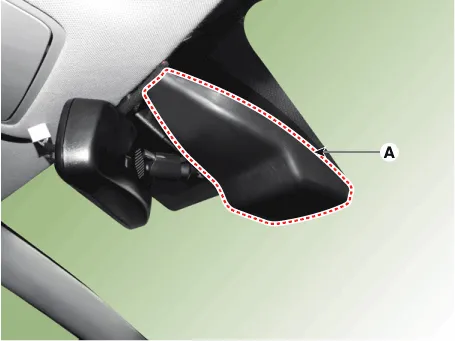

Remove the front view camera cover (A).

3.

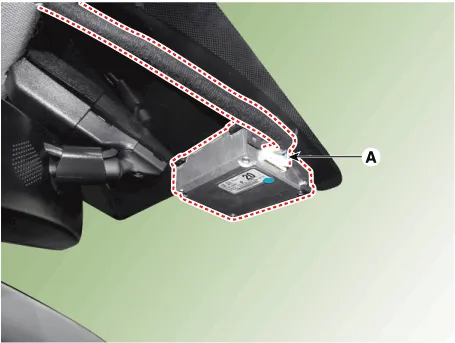

Disconnect the front view camera connector (A).

4.

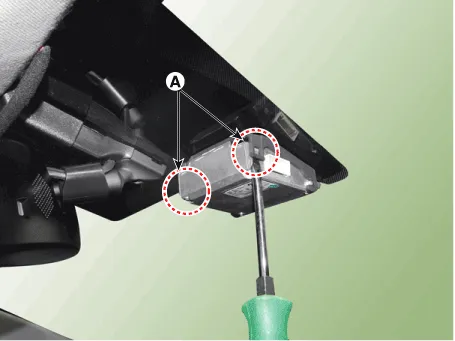

Remove the front view camera after disengaging the mounting bracket (A).

Installation
1.

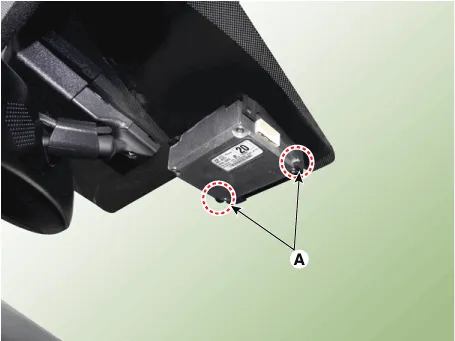

Align front view camera with windshield bracket using forward edge point (A).

2.

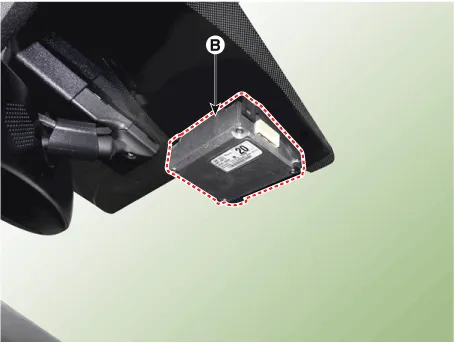

Engage snaps and pivot upward to lock point (B).


•
Front view camera is fully assembled when a single click sound is hear.
3.
Connect the front view camera connector.

4.
Connect the negative (-) battery terminal.
