Hyundai Ioniq (AE): ESP(Electronic Stability Program) System / ESP OFF Switch. Repair procedures

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Brake System / ESP(Electronic Stability Program) System / ESP OFF Switch. Repair procedures

Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower cover.
(Refer to Body - "Crash Pad")
3.

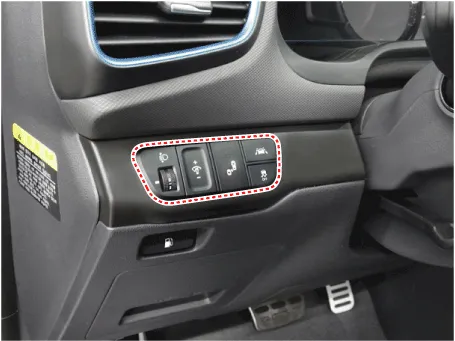

Disconnect the crash pad side switch assembly.

4.

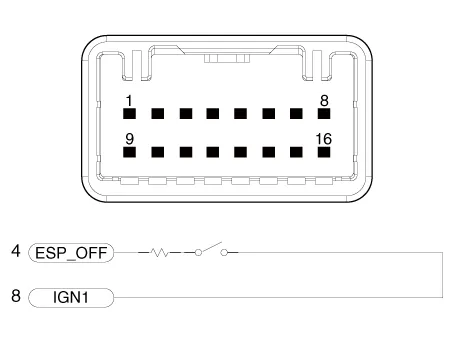

Check the continuity between the switch terminals as the ESP OFF switch is engaged.

    Components1. ESP OFF Switch

    DescriptionIntroduction of Quick Brake Warning System (ESS)In case of quick brake by driver, the brake lamp or turn signal is blinked to warn against the vehicle at rear.
