Hyundai Ioniq (AE): ESP(Electronic Stability Program) System / ESP OFF Switch. Components and components location

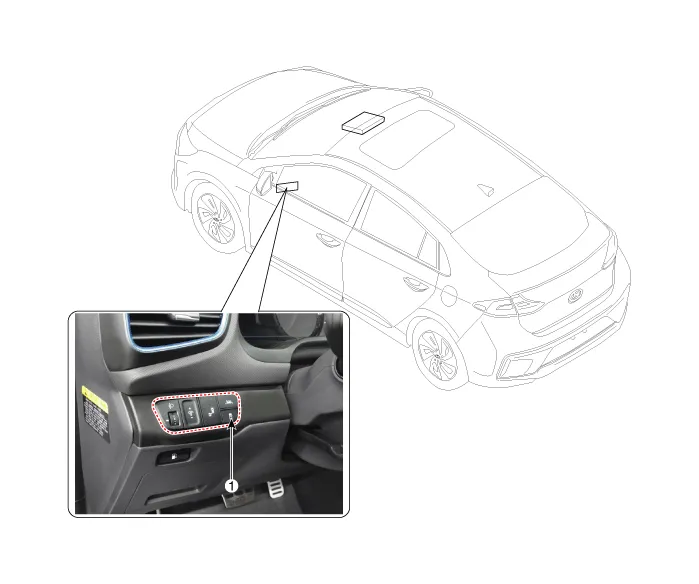

| Components |
| 1. ESP OFF Switch |
Description1.The ESP OFF switch is for the user to turn off the ESP system.2.The ESP OFF lamp is on when ESP OFF switch is engaged.
Removal1.Turn ignition switch OFF and disconnect the negative (-) battery cable.2.Remove the crash pad lower cover.(Refer to Body - "Crash Pad")3.Disconnect the crash pad side switch assembly.
