Hyundai Ioniq (AE): Front Bumper / Front Bumper Cover. Components and components location

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Cover. Components and components location

Component Location

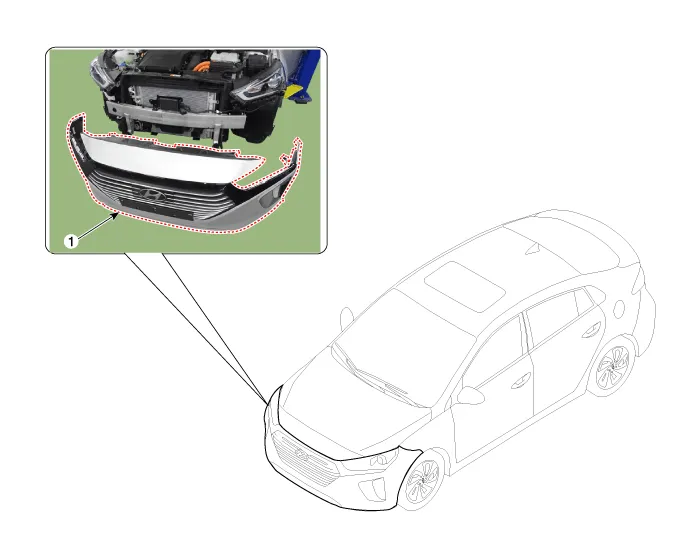

1. Front bumper cover

❮Components and components location

Components1. Front bumper side bracket [LH]2. Front bumper side bracket [RH]3. Front bumper cover

Front Bumper Cover. Repair procedures❯

Replacement • Put on gloves to prevent hand injuries. • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Other information:

Hyundai Ioniq (AE) 2017-2022 Service & Repair Manual: Special service tools

Special Service Tools Tool Name / Number Illustration Description LKA Compensator(09964-C1100)Used for compensating front view camera unitBCW Sensor Correction Tool Set(09958-3T500)Used to correct the blind-spot radar unit.
