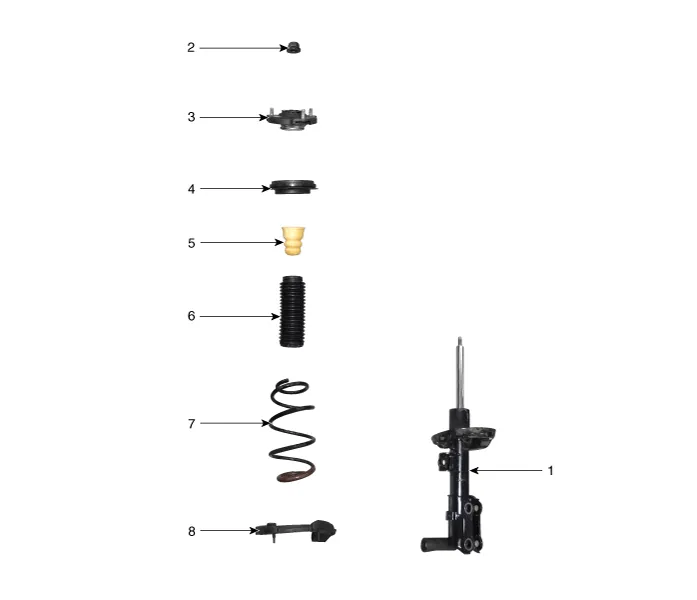

Components

1. Strut assembly
2. Lock nut
3. Insulator
4. Strut bearing & Spring upper pad
5. Bumper rubber
6. Dust cover
7. Coli spring
8. Spring lower pad

    Components Location1. Brake caliper2. Lower arm3. Sub frame4. Steering gearbox5. Stabilizer bar6. Brake disc

    Removal1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.2.Remove the front wheel and tire (A) from the front hub.
