Hyundai Ioniq (AE): Front Suspension System / Components and components location

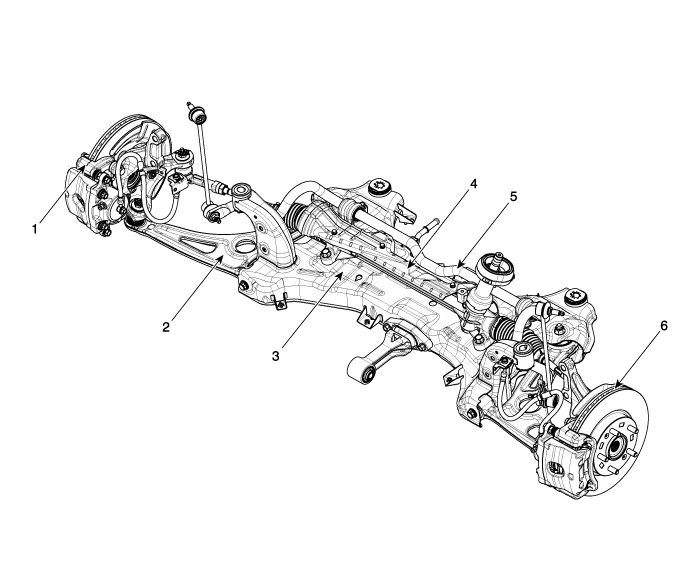

| Components Location |
| 1. Brake caliper 2. Lower arm 3. Sub frame | 4. Steering gearbox 5. Stabilizer bar 6. Brake disc |
Components1. Strut assembly2. Lock nut3. Insulator 4. Strut bearing & Spring upper pad5. Bumper rubber6. Dust cover7. Coli spring8. Spring lower pad
