Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

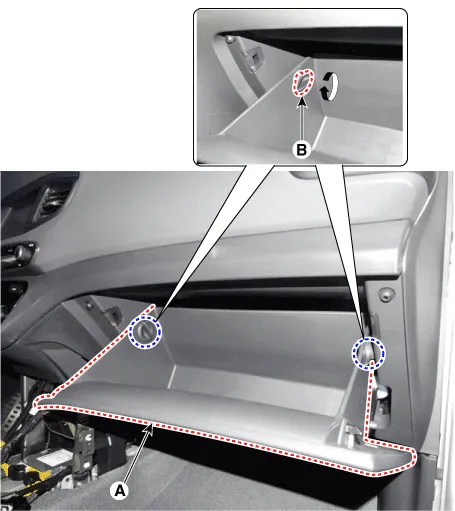

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

2.

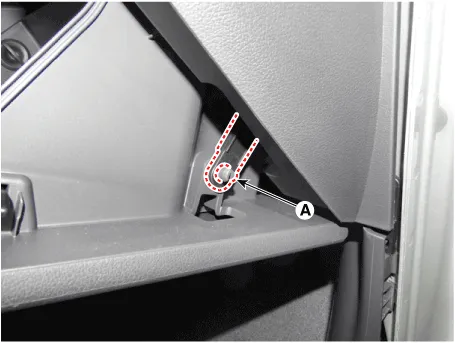

Separate the air damper from the glove box (A).

3.
Disconnect the pushpins (A) and then remove the glove box (B).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Glove box

    Component Location 1. Glove box upper cover assembly
